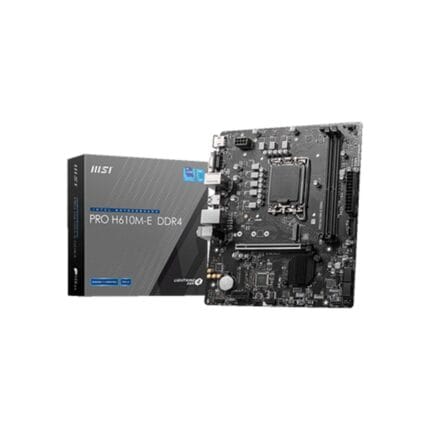

MSI PRO H610M-E DDR4 12TH/13TH GEN MOTHERBOARD
Original price was: 11,200.00৳ .9,999.00৳ Current price is: 9,999.00৳ .
MSI A520M-A PRO AM4 AMD ATX Motherboard
Original price was: 8,900.00৳ .7,900.00৳ Current price is: 7,900.00৳ .

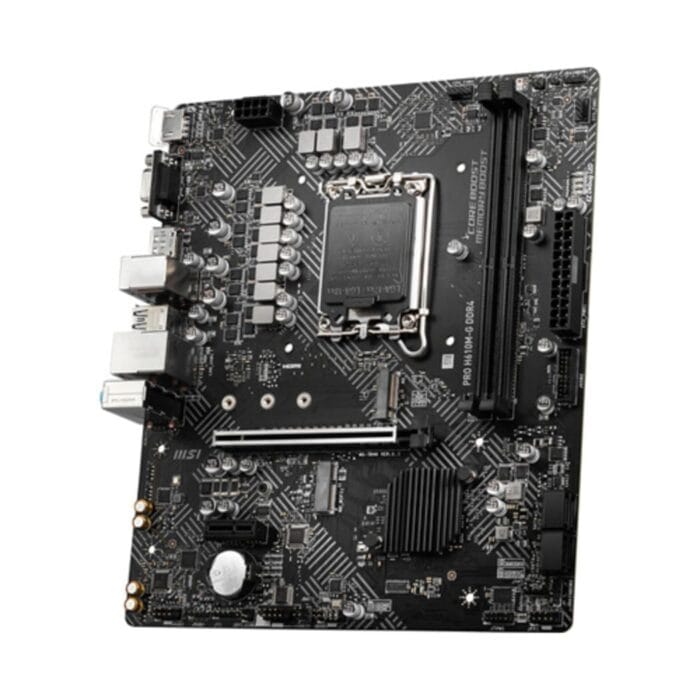

MSI PRO H610M-G DDR4 MICRO-ATX LGA 1700 MOTHERBOARD
Original price was: 11,500.00৳ .10,500.00৳ Current price is: 10,500.00৳ .
Key Features
- Micro-ATX Form Factor
- Intel H610 Chipset
- LGA 1700 Socket
- 2 x Dual-Channel DDR4
| Brands |
|---|
Description
| Processor | |
| Supported CPU | Supports 12th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors Processor socket LGA1700 Please go to www.msi.com to get the newest support status as new processors are released. |
| Mainboard | |
| Chipset | Intel H610 Chipset |
| Memory | |
| Memory | 2x DDR4 memory slots, support up to 64GB1 Supports 1R 2133/ 2666/ 2933/ 3200 MHz (by JEDEC & POR) Supports Dual-Channel mode Supports non-ECC, un-buffered memory |
| Storage | |
| Supported Storage | 1x M.2 slot (Key M, from chipset) Supports up to PCIe 3.0 x4 Supports up to SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices Supports Intel® Smart Response Technology for Intel Core processors |
| Graphics | |
| Graphics | 1x HDMI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz 1x VGA port, supports a maximum resolution of 2048×1536 50Hz, 2048×1280 60Hz, 1920×1200 60Hz x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz |
| Audio & Microphone | |
| Audio | Realtek ALC892/ ALC897 Codec 7.1-Channel High Definition Audio |
| Networking & Connectivity | |
| LAN | 1x Intel® I219V 1Gbps LAN controller |
| Ports | |
| Slots | 1x PCIe x16 slot (From CPU) Supports up to PCIe 4.0 x16 1x PCIe x1 slot Supports PCIe 3.0 x1 1x M.2 slot with E-key for PCIe WiFi module only (M2_ WIFI1) |

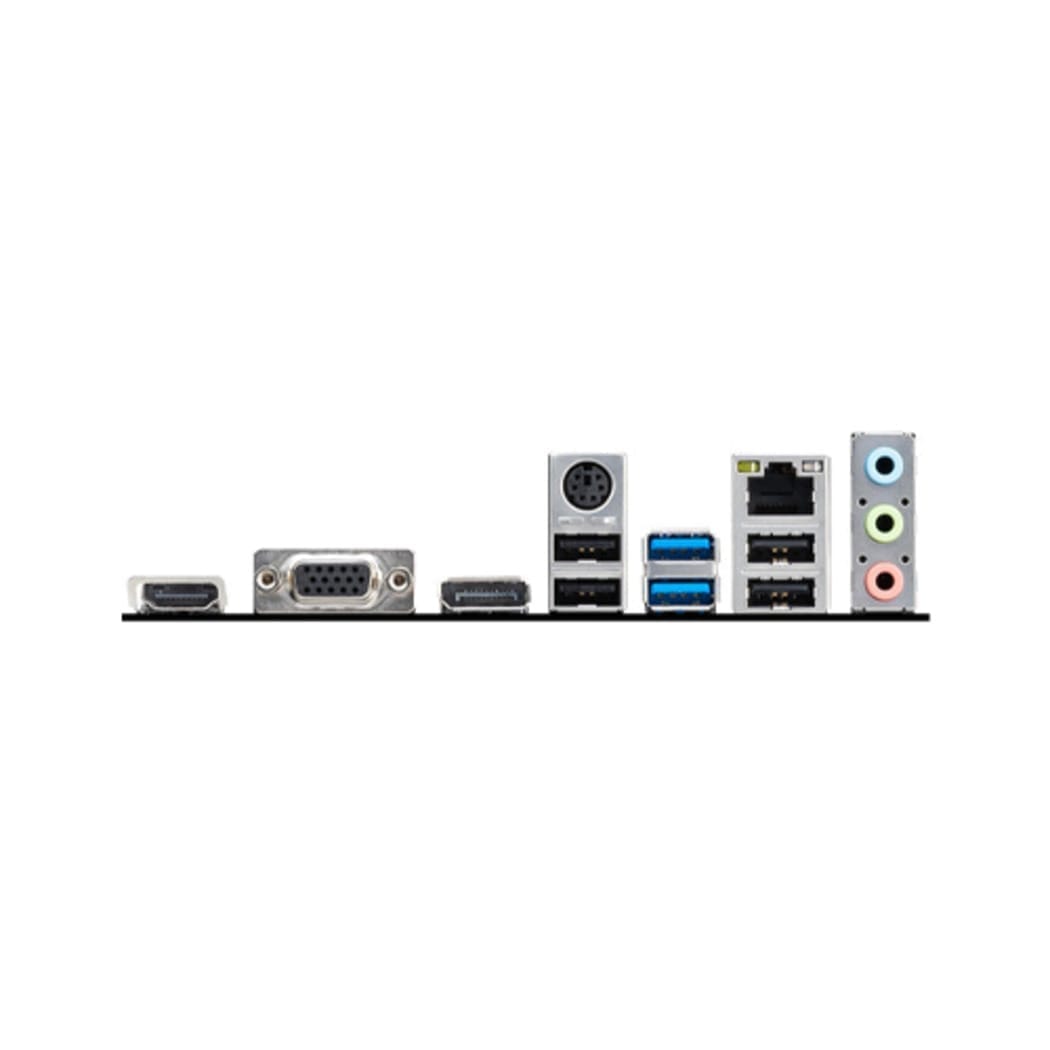

| External I/O Ports | HDMI VGA DisplayPort Keyboard/Mouse USB 3.2 Gen 1 5Gbps Type-A LAN port Audio connector USB 2.0 |
| USB | Intel® H610 Chipset 4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 ports available through the internal USB connector) 6x USB 2.0 ports (4 Type-A ports on the back panel(hub-GL850G), 2 ports available through the internal USB 2.0 connector) |
| Physical Specification | |
| Form Factor | mATX Form Factor |
| Dimension | 9.29 x 7.95 in. (23.6 cm x 20.2 cm) |
| Warranty Information | |
| Warranty | 2 Years |
