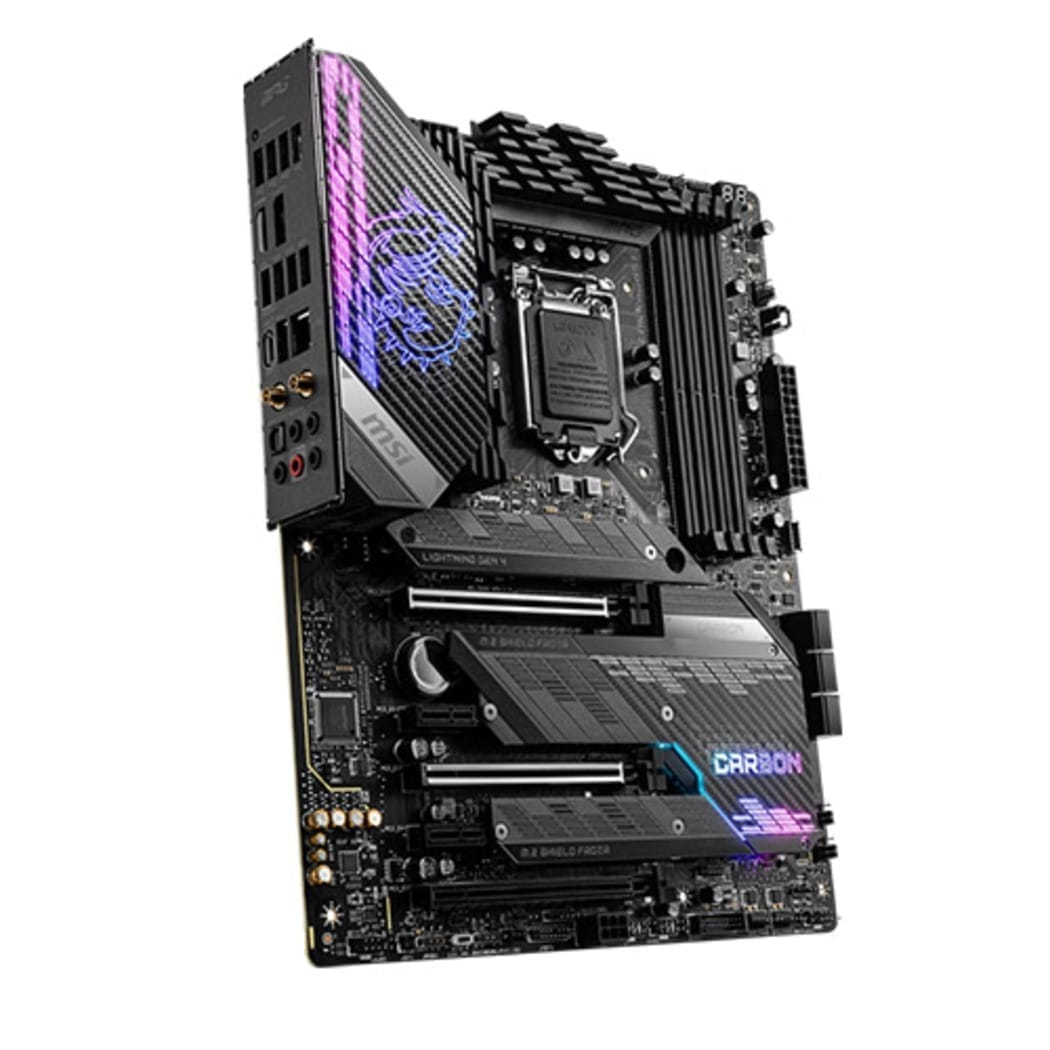

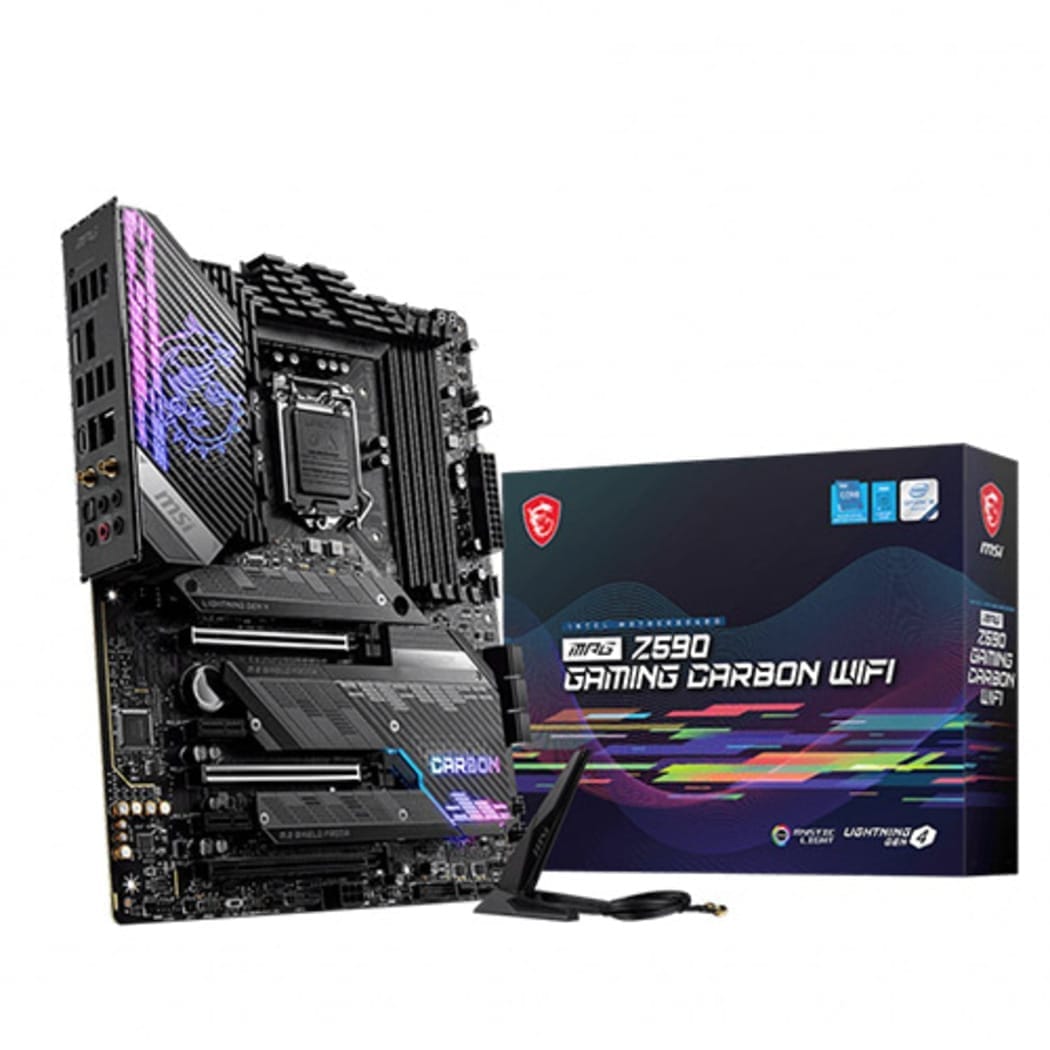

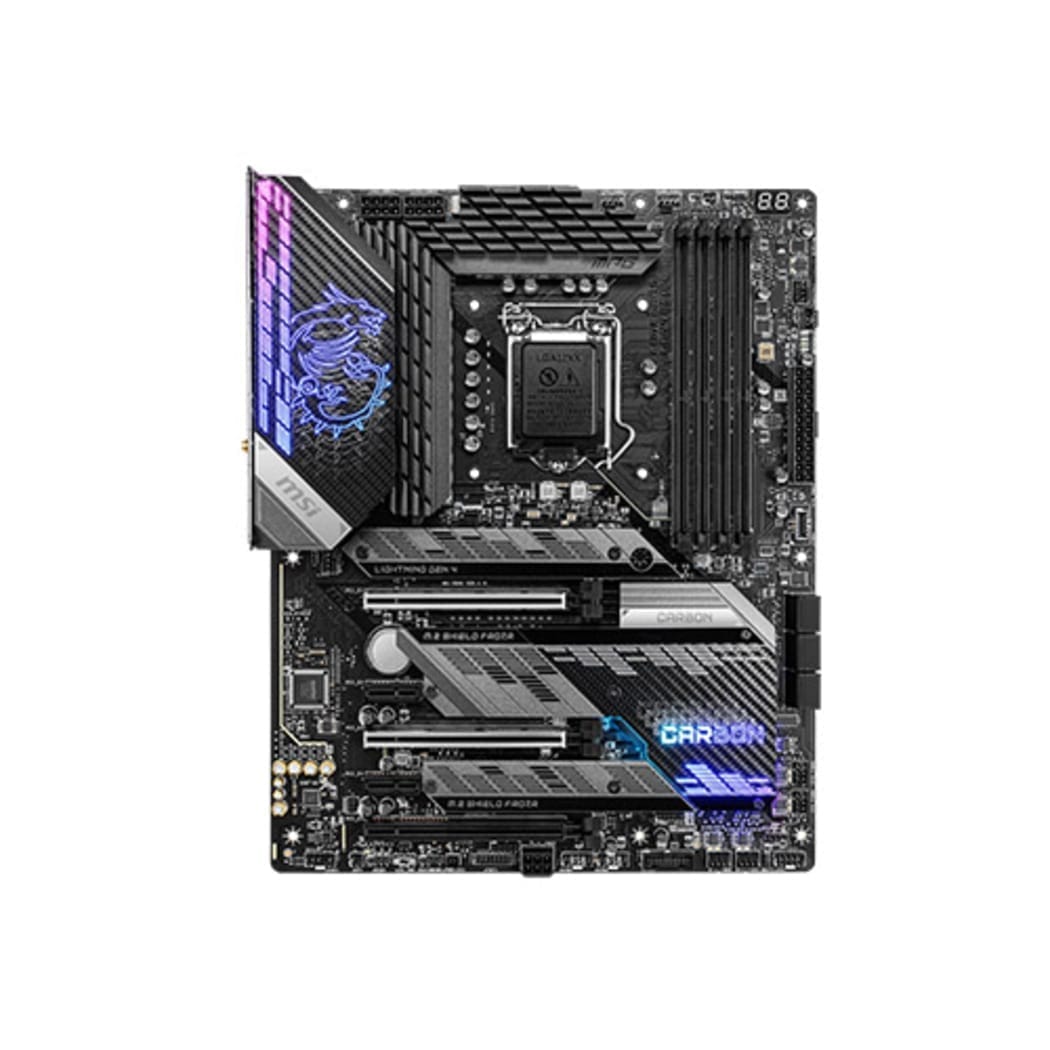

MSI MPG Z590 Gaming Carbon WiFi 10th Gen and 11th Gen ATX Motherboard
Original price was: 40,500.00৳ .35,000.00৳ Current price is: 35,000.00৳ .
Key Features
- ATX Form Factor
- Intel Z590 Chipset
- Socket LGA 1200
- Supports 11th Gen Processor
| Brands |
|---|
Description
| Processor | |
| Supported CPU | Supports 10th Gen Intel Core Processors, 11th Gen Intel Core Processors, Pentium Gold, and Celeron Processors Processor socket LGA1200 |
| Mainboard | |
| Chipset | Intel Z590 Chipset |
| Memory | |
| Memory | 4x DDR4 memory slots, support up to 128GB1 Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel® CPU (by JEDEC & POR) Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel® CPU (by JEDEC & POR) Max overclocking frequency: 1DPC 1R Max speed up to 5333 MHz 1DPC 2R Max speed up to 4700+ MHz 2DPC 1R Max speed up to 4400+ MHz 2DPC 2R Max speed up to 4000+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel Extreme Memory Profile (XMP) |
| Storage | |
| Supported Storage | 6x SATA 6Gb/s ports (From Z590 Chipset) 3x M.2 slots (Key M) M2_1 slot (From CPU) Available only on 11th Gen Intel CPU Supports PCIe 4.0 x4 Supports 2242/ 2260/ 2280/ 22110 storage devices M2_21 & M2_32 slot (From Z590 Chipset) Supports PCIe 3.0 x4 Supports SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices Intel Optane Memory Ready Supports Intel Smart Response Technology for Intel Core processors |
| Graphics | |
| Multi-GPU | Supports 3-Way AMD CrossFire Technology |
| Graphics | HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz |
| Audio & Microphone | |
| Audio | Realtek ALC4080 Codec 7.1-Channel High Definition Audio |
| Networking & Connectivity | |
| LAN | Intel I225V 2.5Gbps LAN controller |
| WiFi | Intel Wi-Fi 6E AX210 The Wireless module is pre-installed in the M.2 (Key-E slot Supports MU-MIMO TX/RX, 2.4GHz/ 6GHz 1(160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth 5.22, FIPS, FISMA |
| Ports | |
| Slots | 3x PCIe x16 slots Support x16/x0/x4, x8/x8/x4, x8/x4+x4/x4 PCI_E1 & PCI_E3 slots (From CPU) Support PCIe 4.0 for 11th Gen Intel CPU Support PCIe 3.0 for 10th Gen Intel CPU PCI_E5 slot (From Z590 Chipset) Supports PCIe 3.0 2x PCIe 3.0 x1 slots (From Z590 Chipset) |
| Internal I/O Ports | 1x 24-pin ATX main power connector 2x 8-pin ATX 12V power connectors 1x 6-pin PCIE power connector 6x SATA 6Gb/s connectors 3x M.2 slots (M-Key) 1x USB 3.2 Gen 2 10Gbps Type-C port 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 Type-A connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 6x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x Clear CMOS jumper 1x TPM module connector 1x TBT connector (supports RTD3) 1x Tuning Controller connector |

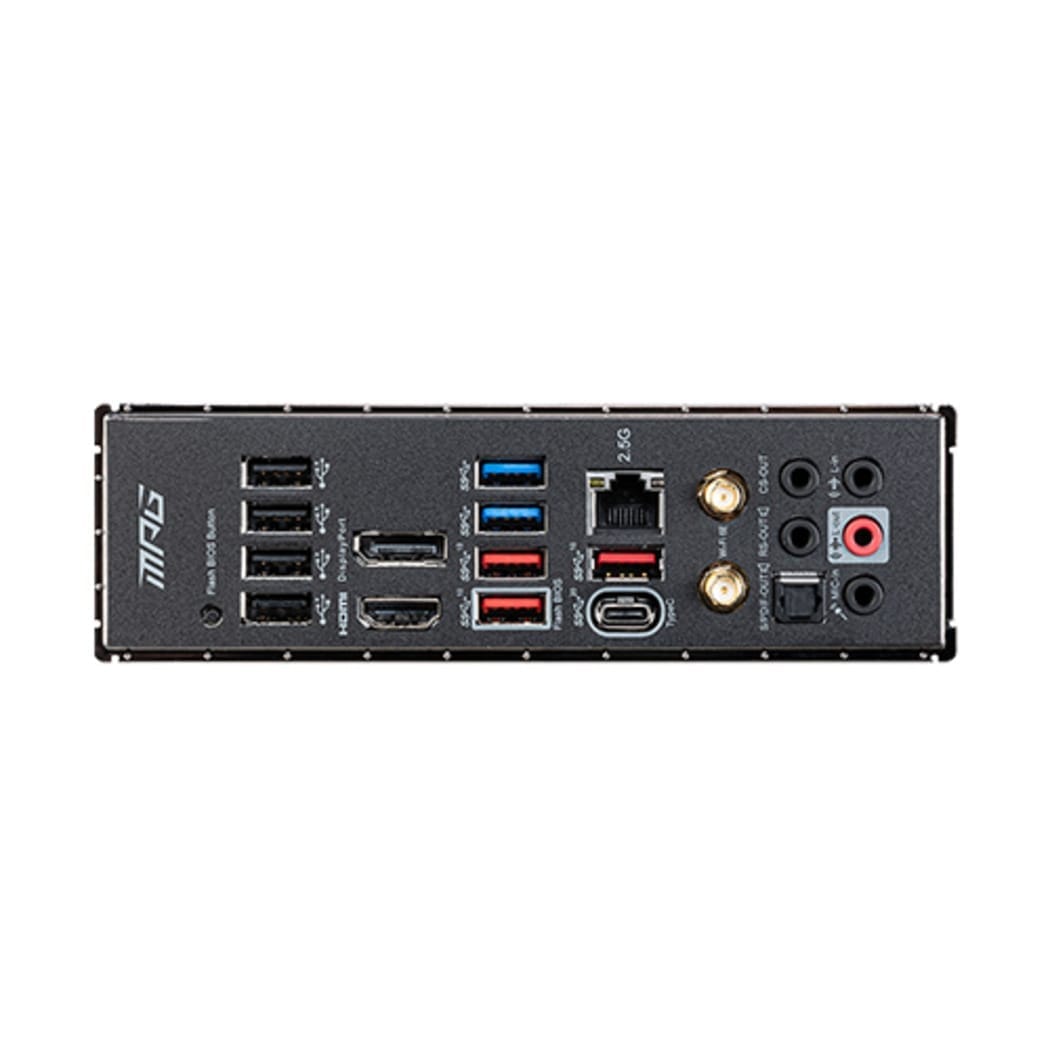

| External I/O Ports | USB 2.0 DisplayPort USB 3.2 Gen 1 5Gbps Type-A 2.5G LAN Audio Connectors Flash BIOS Button HDMI USB 3.2 Gen 2 10Gbps Type-A USB 3.2 Gen 2×2 20Gbps Type-C Wi-Fi / Bluetooth Optical S/PDIF Out |
| USB | Intel Z590 Chipset 1x USB3.2 Gen2x2 20Gbps port (Type-C port on the back panel) 4x USB 3.2 Gen 2 10Gbps ports (3 Type-A port on the back panel, 1 Type-C available through the internal connector) 4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 Type-A ports available through the internal connector) Hub-GL850G 8x USB 2.0 ports (4 Type-A ports on the back panel, 4 Type-A ports available through internal connectors) |
| HDMI | HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz |
| Physical Specification | |
| Form Factor | ATX |
| Dimension | 12 in. x 9.6 in. (30.5 cm x 24.4 cm) |
| Warranty Information | |
| Warranty | 3 Year |
