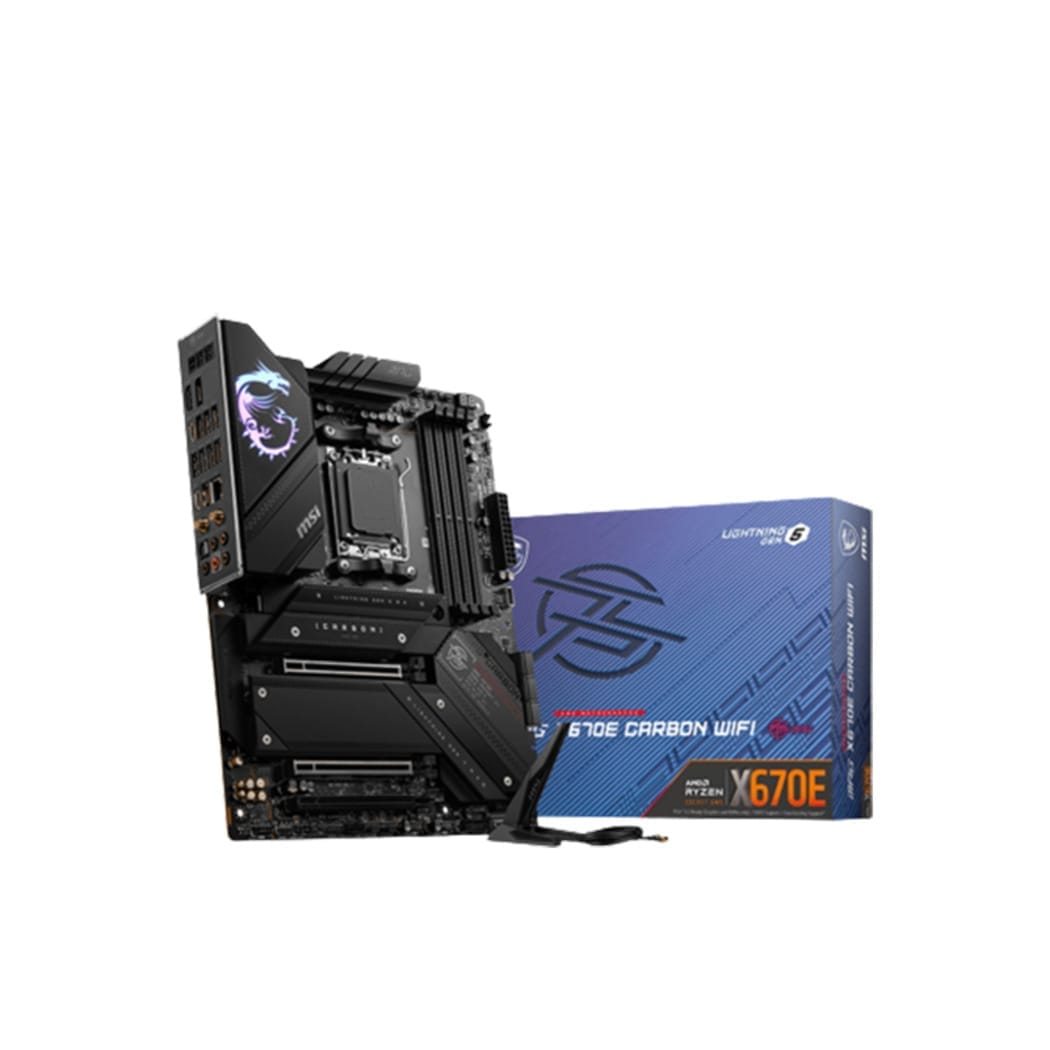

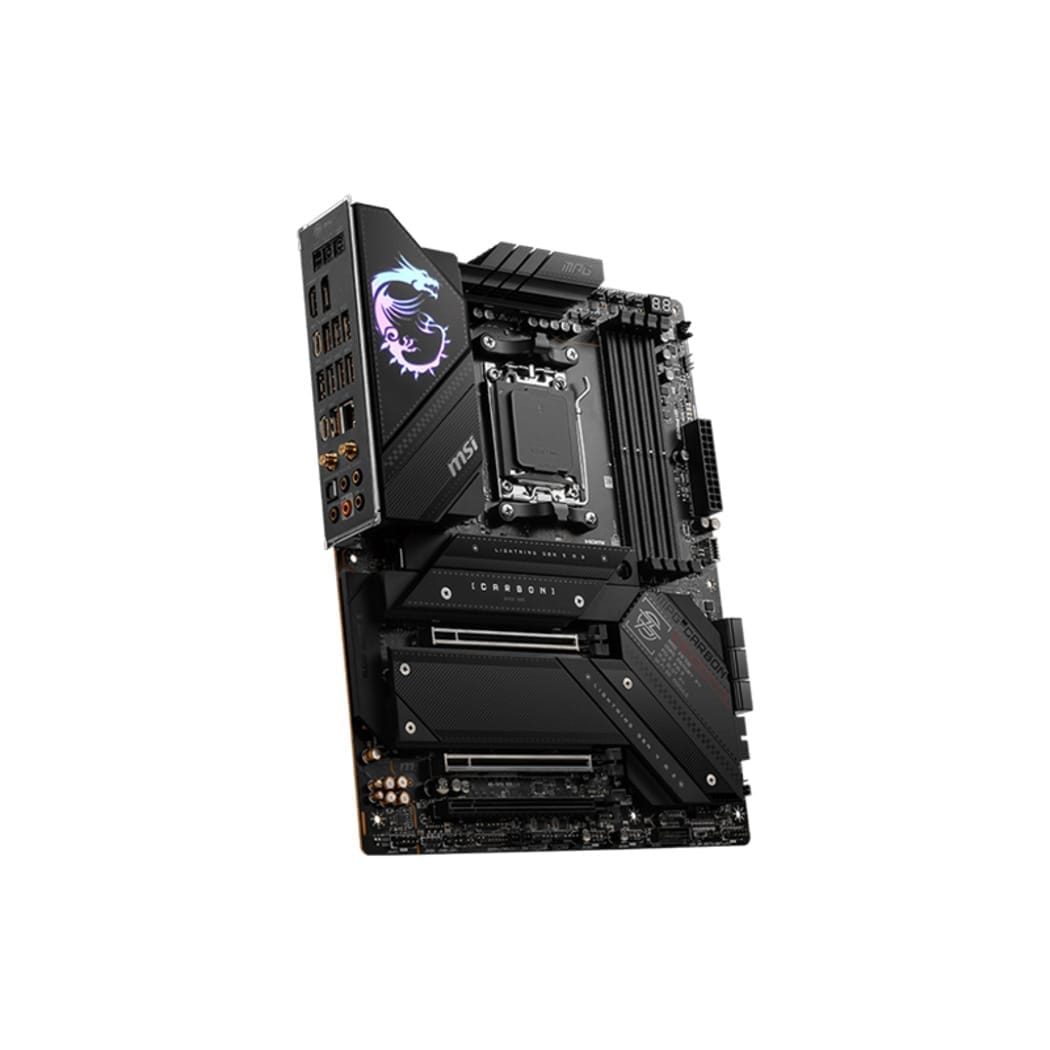

MSI MPG X670E CARBON WIFI AMD AM5 DDR5 ATX MOTHERBOARD
Original price was: 59,500.00৳ .55,500.00৳ Current price is: 55,500.00৳ .
| Brands |
|---|
Description
| Processor | |
| Supported CPU | Supports AMD Ryzen™ 7000 Series Desktop Processors Socket AM5 |
| Mainboard | |
| Chipset | AMD X670 |
| Memory | |
| Memory | 4x DDR5, Maximum Memory Capacity 192GB Memory Support DDR5 6000+(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz Max. overclocking frequency: • 1DPC 1R Max speed up to 6000+ MHz • 1DPC 2R Max speed up to 6000+ MHz • 2DPC 1R Max speed up to 6000+ MHz • 2DPC 2R Max speed up to 5400+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports AMD EXPO |
| Storage | |
| Supported Storage | 4x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 6x SATA 6G |
| Graphics | |
| Multi-GPU | AMD MULTI-GPU Support |
| Graphics | 1x HDMI™ Support HDMITM 2.1 FRL, maximum resolution of 4K 120Hz* 1x DisplayPort Support DP 1.4, maximum resolution of 4K 60Hz* 1x Type-C DisplayPort Supports DisplayPort 1.4 with HBR3, maximum resolution of 4K 120Hz |
| Audio & Microphone | |
| Audio | Realtek® ALC4080 Codec 7.1-Channel USB High Performance Audio Supports S/PDIF output Supports up to 32-Bit/384 kHz playback on front panel |
| Networking & Connectivity | |
| LAN | Realtek® RTL8125BG 2.5Gbps LAN |
| WiFi | AMD Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands Supports 802.11 a/ b/ g/ n/ ac/ ax |
| Bluetooth | Supports Bluetooth® 5.3 |
| Software | |
| Software Features | Support for Windows® 11 64-bit, Windows® 10 64-bit |
| Ports | |
| Slots | 3x PCI-E x16 slot Supports x16/x0/x4, x8/x8/x4 PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 5.0 supports up to x8 (From CPU) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) |
| Internal I/O Ports | 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 5x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Thermal Sensor connectors(T_SEN) 1x Tuning Controller connector(JDASH) 2x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 4x USB 3.2 Gen1 Type A ports 1x USB 3.2 Gen2 Type C ports |

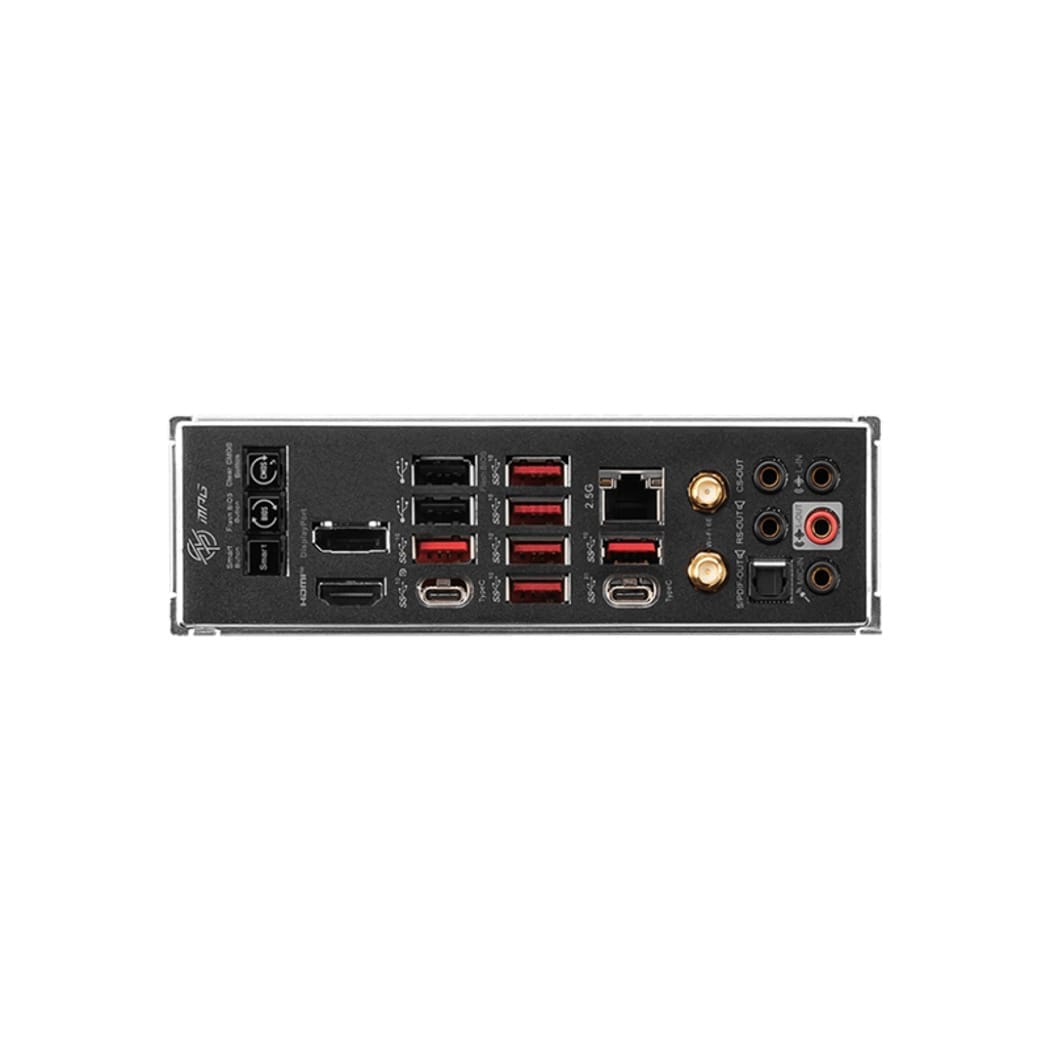

| External I/O Ports | Clear CMOS Button Flash BIOS Button DisplayPort USB 2.0 2.5G LAN Audio Connectors Smart Button HDMI™ USB 3.2 Gen 2 10Gbps (Type-C Display port) USB 3.2 Gen 2 10Gbps (Type-A) USB 3.2 Gen 2×2 20Gbps (Type-C) Wireless / Bluetooth S/PDIF-Out |
| USB | 2x USB 2.0 (Rear) 4x USB 2.0 (Front) 4x USB 3.2 Gen1 Type A (Front) 6x USB 3.2 Gen2 Type A (Rear) 1x USB 3.2 Gen2 Type C (Rear) 1x USB 3.2 Gen2 Type C (Front) 1x USB 3.2 Gen2x2 Type C (Rear) |
| HDMI | 1x HDMI™ |
| Special Features | |
| Special Features | LED FEATURE: 1x EZ LED Control switch 4x EZ Debug LED 1x 2-Digit Debug Code LED |
| Physical Specification | |
| Form Factor | ATX |
| Dimension | 304.8mmx243.84mm |
| Others | |
| Other Features | RAID: Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices Supports RAID 0, RAID 1, and RAID 10 for M.2 NVMe storage devices |
| Warranty Information | |
| Warranty | 3 Years Warranty |
