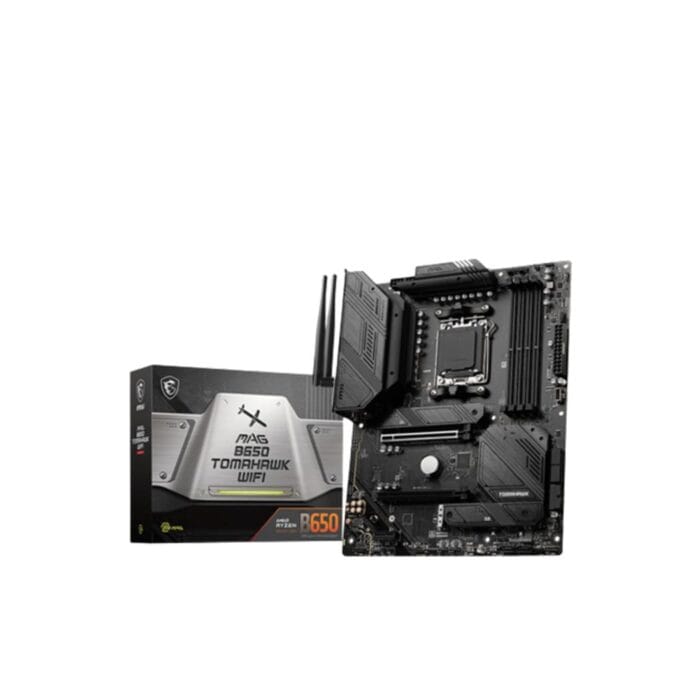

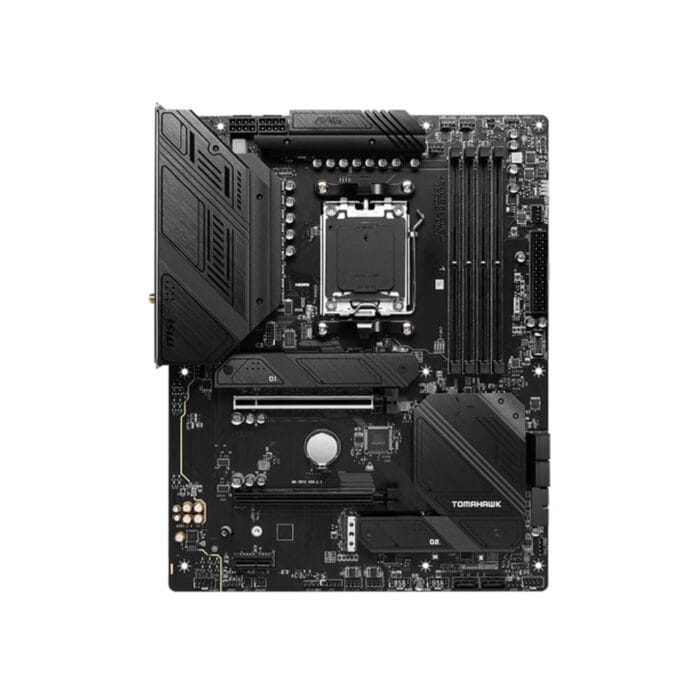

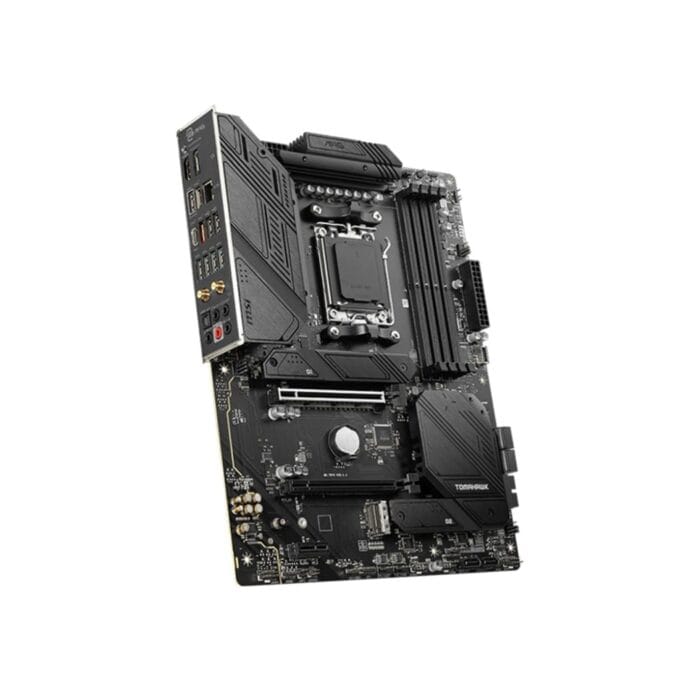

MSI MAG B650 TOMAHAWK WIFI AMD AM5 DDR5 MOTHERBOARD
Original price was: 33,000.00৳ .30,700.00৳ Current price is: 30,700.00৳ .
Key Features
- Chipset: AMD B650
- Sockets Supported: AM5
- Memory Max.: 192GB
- Memory Slot: 4
| Brands |
|---|
Description
| Processor | |
| Supported CPU | Supports AMD Ryzen™ 7000 Series Desktop Processors Socket AM5 |
| Mainboard | |
| Chipset | AMD B650 |
| Memory | |
| Memory | 4x DDR5, Maximum Memory Capacity 192GB Memory Support DDR5 6000+(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz Max. overclocking frequency: • 1DPC 1R Max speed up to 6000+ MHz • 1DPC 2R Max speed up to 6000+ MHz • 2DPC 1R Max speed up to 6000+ MHz • 2DPC 2R Max speed up to 5400+ MHz |
| Storage | |
| Supported Storage | 3x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 6x SATA 6G |
| Graphics | |
| Multi-GPU | Yes |
| Graphics | 1x HDMI™ Support HDMITM 2.1 with HDR, maximum resolution of 4K 60Hz* 1x DisplayPort Support DP 1.4, maximum resolution of 8K 60Hz |
| Audio & Microphone | |
| Audio | Realtek® ALC4080 Codec 7.1-Channel High Performance Audio Supports S/PDIF output Supports up to 32-Bit/384 kHz playback on front panel |
| Networking & Connectivity | |
| LAN | Realtek® RTL8125B 2.5Gbps LAN |
| WiFi | AMD Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands Supports 802.11 a/ b/ g/ n/ ac/ ax |
| Bluetooth | Supports Bluetooth® 5.3 |
| Software | |
| Software Features | Support for Windows® 11 64-bit, Windows® 10 64-bit |
| Ports | |
| Slots | 2x PCI-E x16 slot Support x16/ x4 1x PCI-E x1 slot PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 4.0 supports up to x2 (From Chipset) PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset) |
| Internal I/O Ports | 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 6x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Tuning Controller connector(JDASH) 2x Addressable V2 RGB LED connector (JARGB_V2) 2x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 3.2 Gen1 Type A ports 1x USB 3.2 Gen2 Type C ports |

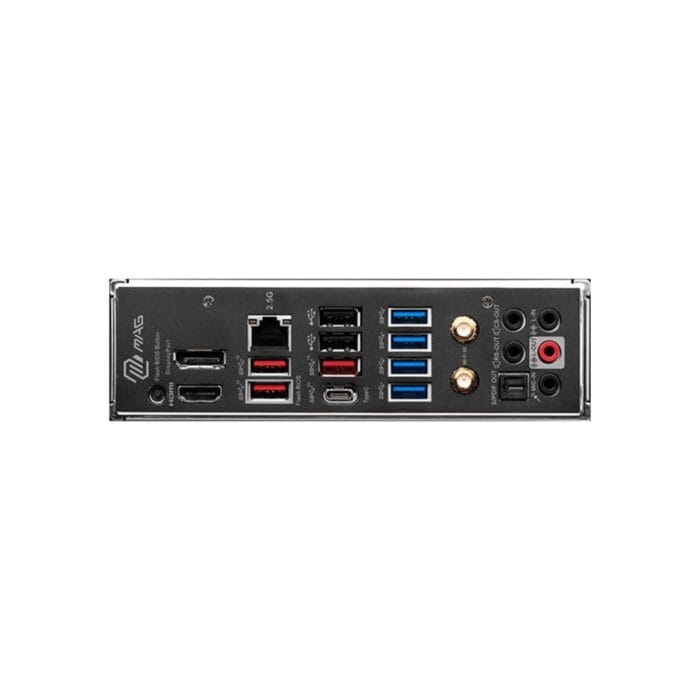

| External I/O Ports | DisplayPort 1.4 2.5G LAN Port USB 2.0 Port USB 3.2 Gen 1 5Gbps Type-A Wi-Fi / Bluetooth Antenna HD Audio Connectors Flash BIOS Button HDMI™ 2.1 Port USB 3.2 Gen 2 10Gbps Type-A USB 3.2 Gen 2×2 20Gbps Type-C Optical S/PDIF OUT |
| USB | 2x USB 2.0 (Rear) 4x USB 2.0 (Front) 4x USB 3.2 Gen1 Type A (Rear) 2x USB 3.2 Gen1 Type A (Front) 3x USB 3.2 Gen2 Type A (Rear) 1x USB 3.2 Gen2 Type C (Front) 1x USB 3.2 Gen2x2 Type C (Rear) |
| HDMI | 1x HDMI™ |
| Special Features | |
| Special Features | LED FEATURE: 4x EZ Debug LED |
| Physical Specification | |
| Form Factor | ATX |
| Dimension | 243.84mmx304.8mm |
| Others | |
| Other Features | RAID Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices* Supports RAID 0 and RAID 1 for M.2 NVMe storage devices |
| Warranty Information | |
| Warranty | 3 Years Warranty |
