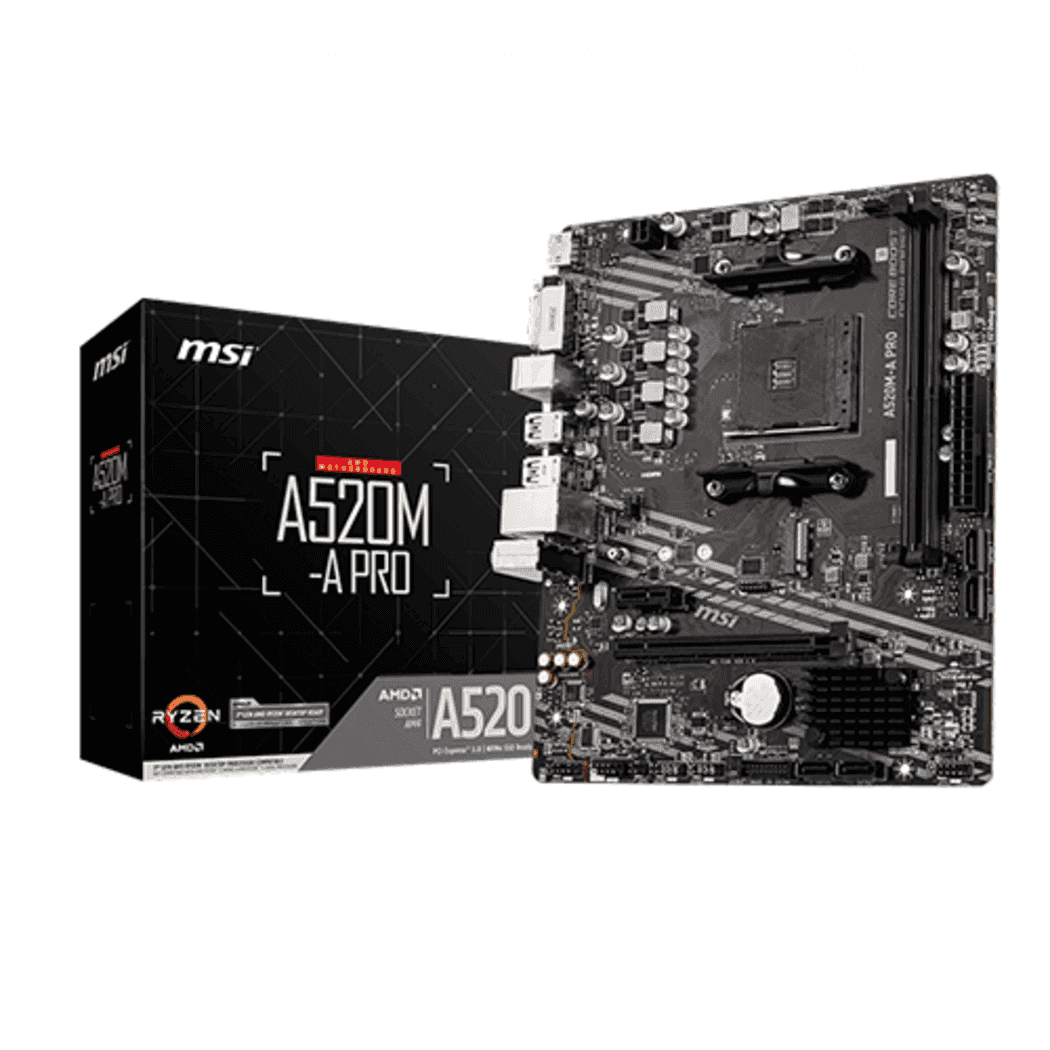

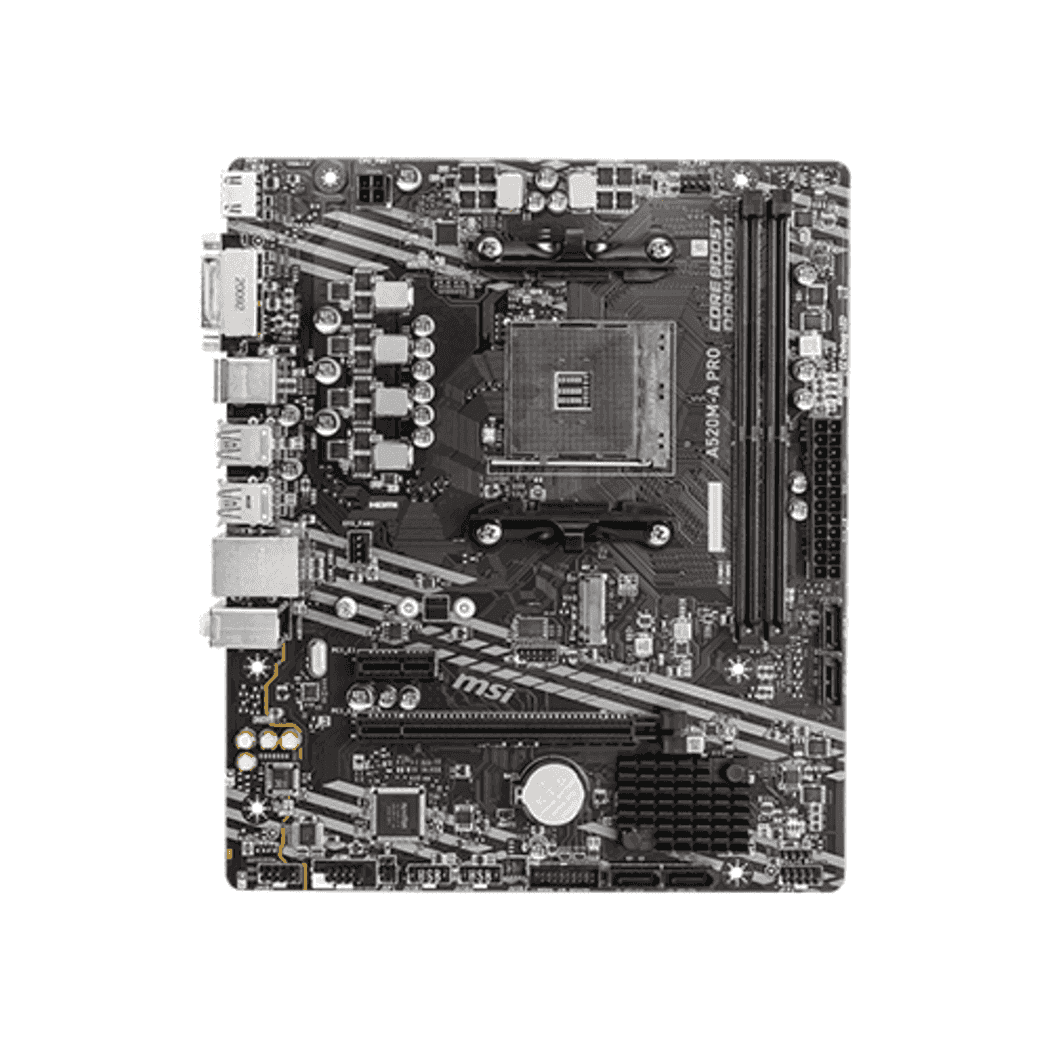

MSI A520M-A PRO AM4 AMD ATX Motherboard
Original price was: 8,900.00৳ .7,900.00৳ Current price is: 7,900.00৳ .
Key Features
- Chipset AMD A520 Chipset
- Support 3rd Gen AMD Ryzen
- 1x Realtek® RTL8111H
- Realtek® ALC892 Codec
| Brands |
|---|
Description
| Processor | |
| Supported CPU | Support 3rd Gen AMD Ryzen™ Desktop Processors and AMD Ryzen™4000 G-Series Desktop Processors |
| Mainboard | |
| Chipset | AMD A520 Chipset |
| Memory | |
| Memory | 2x DDR4 memory slots, support up to 64GB 1 Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400/ 4600+ MHz by A-XMP OC MODE 1DPC 1R max speed 4600 MHz 1DPC 2R max speed 3866 MHz Dual channel memory architecture Supports non-ECC UDIMM memory Supports ECC UDIMM memory (non-ECC mode) Supports un-buffered memory |
| Storage | |
| Supported Storage | AMD A520 Chipset 4x SATA 6Gb/s ports 1x M.2 slot (Key M) (from AMD Processor) Supports PCIe 3.0 1 Supports SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices |
| Graphics | |
| Graphics | 1x HDMI 2.1 port, supports a maximum resolution of 4096×2160 @60Hz12 1x DVI-D port, supports a maximum resolution of 1920×1200@60Hz1 Maximum shared memory of 16 GB Available for the processor with integrated graphics. Graphics specifications may vary depending on the CPU installed. |
| Audio & Microphone | |
| Audio | Realtek® ALC892 Codec 7.1-Channel High Definition Audio |
| Networking & Connectivity | |
| LAN | 1x Realtek® RTL8111H Gigabit LAN controller |
| Ports | |
| Slots | 1x PCIe 3.0 x1 slot 1 1x PCIe x16 slot |

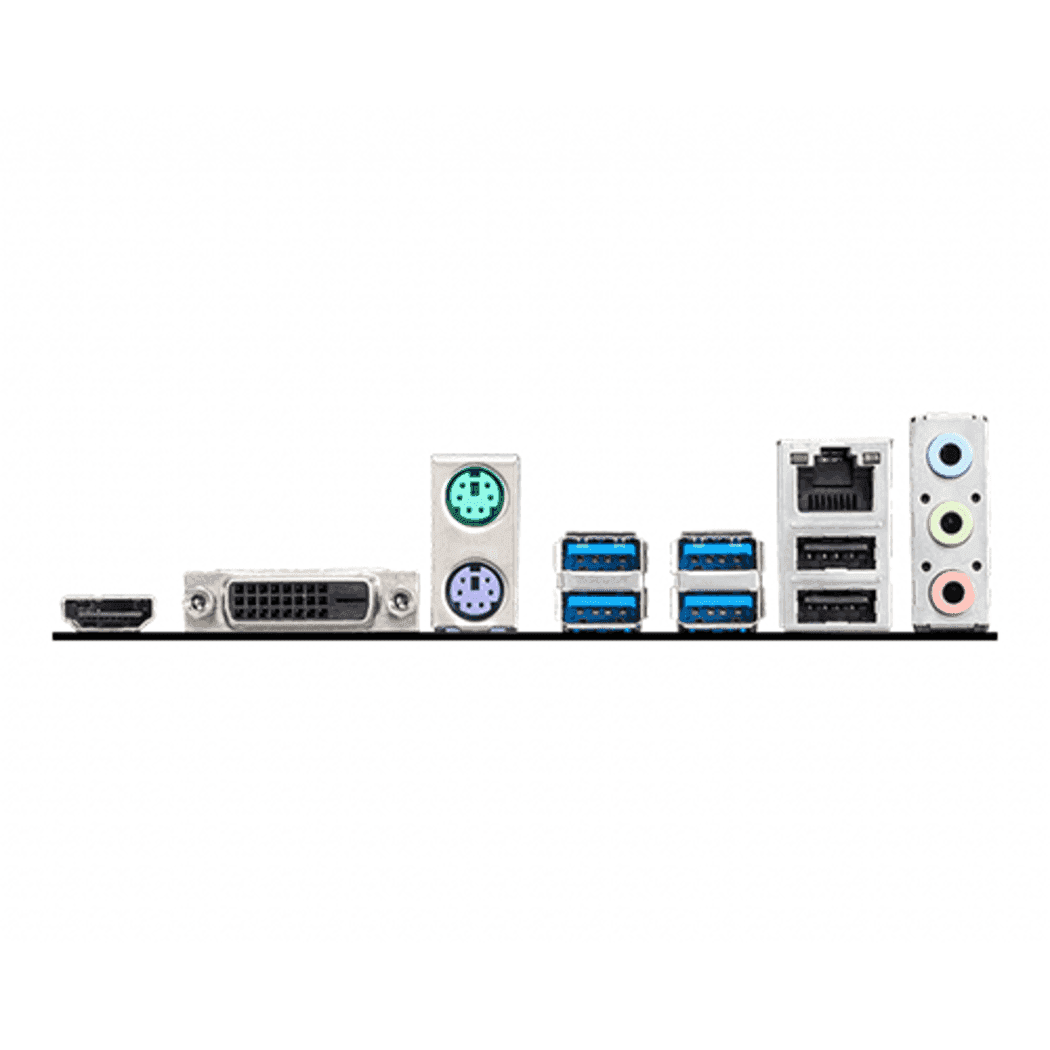

| Internal I/O Ports | 1x 24-pin ATX main power connector 1x 4-pin ATX 12V power connector 4x SATA 6Gb/s connectors 1x M.2 slots (M-Key) 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1xTPM module connector 1x Clear CMOS jumper |
| USB | AMD A520 Chipset 2x USB 3.2 Gen 1 5Gbps ports are available through the internal USB 3.2 Gen 1 5Gbps connector 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors) |
| Physical Specification | |
| Form Factor | MATX |
| Warranty Information | |
| Warranty | 03 Years |
