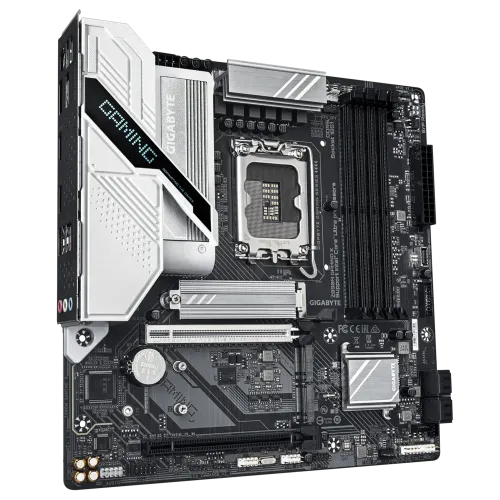

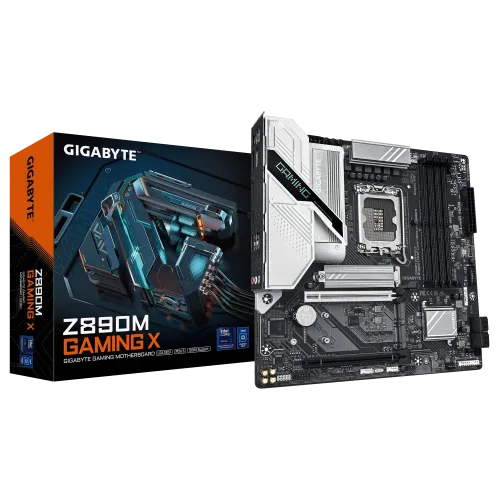

Gigabyte Z890M GAMING X LGA1851 Micro ATX Motherboard
Specification
| Basic Information | ||
| Supported CPU | LGA1851 socket: Support for Intel Core Ultra Processors L3 cache varies with CPU | |
| Chipset | Intel Z890 Express Chipset | |
| BIOS | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 | |
| Form Factor | Micro ATX Form Factor; 24.4cm x 24.4cm | |
| Audio | Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel | |
| Expansion Slots | ||
| PCI | CPU: – 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: | |
| M.2 Socket | CPU: – 1 x M.2 connector (Socket 3, M key, type 2580/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU) Chipset: – 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support)(M2Q_SB) – 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0×4/x2 SSD support) (M2N_SB) | |
| Memory | ||
| Type | DDR5 | |
| Slots | 4 x DIMM | |
| Supported Memory | Support for DDR5 9066(O.C) / 8933(O.C) / 8800(O.C) / 8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 6200 / 6000 / 5800 / 5600MT/s memory modules. 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity)of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules Support CUDIMM memory module | |
| Maximum Memory | up to 256 GB (64 GB single DIMM capacity) of system memory | |
| Graphics | ||
| Graphics | Integrated Graphics Processor-Intel HD Graphics support: – 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. ** Support for native HDMI 2.1 TMDS compatible ports. – 2 x DisplayPorts, supporting a maximum resolution of 4096×2304@60 Hz | |
| Connector & Ports | ||
| HDMI | 1 x HDMI port | |
| Display Port (s) | 2 x DisplayPort | |
| LAN Port (s) | Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) | |
| Supported Storage | CPU: – 1 x M.2 connector (Socket 3, M key, type 2580/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU) Chipset: – 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support)(M2Q_SB) – 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0×4/x2 SSD support) (M2N_SB) – 4 x SATA 6Gb/s connectors | |
| RAID | RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices | |
| Audio | 3 x audio jacks 1 x front panel audio header | |

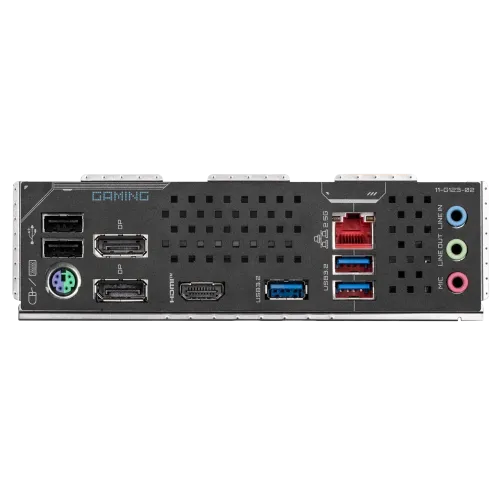

| Internal I/O Ports | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x CPU fan/water cooling pump header 1 x system fan header 1 x system fan/water cooling pump header 2 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 3 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 2 x Thunderbolt™ add-in card connectors 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 1 x serial port header 1 x Clear CMOS jumper Back Panel Connectors 1 x PS/2 keyboard/mouse port 3 x USB 3.2 Gen 1 ports 2 x USB 2.0/1.1 ports 1 x HDMI port (Note) 2 x DisplayPorts (Note) 1 x RJ-45 port 3 x audio jacks | |
| TPM (Trusted Platform Module ) | 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) | |
| Others | ||
| Special Features | Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functionsof each application may also vary depending on motherboard specifications. Support for Q-Flash | |
| Bundled Software | Norton Internet Security (OEM version) LAN bandwidth management software | |
| Warranty Information | ||
| Manufacturing Warranty | 3 Year | |
Description
Gigabyte Z890M GAMING X LGA1851 Micro ATX Motherboard
The Gigabyte Z890M GAMING X Micro ATX Motherboard is an Ultra Powerful motherboard designed to support Intel Core Ultra processors with an LGA1851 socket. Featuring the Intel Z890 Express Chipset, this Gigabyte Z890M GAMING X Motherboard offers exceptional performance and DDR5 memory support, with memory speeds ranging from 6400 MT/s to 9066 MT/s across 4 x DIMM slots, supporting up to 256 GB of system memory. It also supports dual-channel memory architecture, ECC and non-ECC un-buffered DIMMs, and Extreme Memory Profile (XMP) modules for high-speed memory configurations. For integrated graphics, the Gigabyte Z890M GAMING X motherboard includes HDMI 2.1 and DisplayPort 2.1 outputs, supporting triple-display setups at resolutions up to 4096×2304 @60 Hz with HDCP 2.3 compatibility. Powered by a Realtek Audio CODEC, it delivers high-definition audio with support for 2/4/5.1/7.1-channel configurations and includes a Realtek® 2.5GbE LAN chip for fast, reliable networking. The Gigabyte Z890M GAMING X Motherboard also offers extensive expansion options, with a PCIe 5.0 x16 slot for graphics cards or NVMe SSDs, a PCIe 4.0 x16 slot running at x4 for additional expansion, and multiple M.2 connectors supporting PCIe 4.0/5.0 SSDs along with four SATA 6Gb/s connectors, supporting RAID for both NVMe and SATA devices. Featuring a wide range of internal and external I/O connectors, including USB 3.2 Gen 1, USB Type-C, fan headers for cooling, addressable RGB lighting, and Thunderbolt add-in card connectors, the Gigabyte Z890M GAMING X motherboard is highly customizable. It’s compatible with Windows 10 and 11 (64-bit) and uses a 256 Mbit flash BIOS with AMI UEFI BIOS, offering an intuitive interface for advanced configuration. The Micro ATX form factor (24.4cm x 24.4cm) makes the Gigabyte Z890M GAMING X Micro ATX Motherboard perfect for compact PC builds without compromising on performance. Whether for gaming or professional use, the Gigabyte Z890M GAMING X Motherboard delivers unbeatable features and future-proof capabilities, making it the ideal choice for building a high-performance gaming rig or workstation.
Buy Gigabyte Z890M GAMING X LGA1851 Micro ATX Motherboard from UNIVERSE TECHNOLOGY
In Bangladesh, you can get original Gigabyte Z890M GAMING X LGA1851 Micro ATX Motherboard From Star Tech. We have a large collection of latest Gigabyte Motherboard to Purchase for your Desktop PC Order Online Or Visit our shop to get yours at lowest price. The Gigabyte Z890M GAMING X LGA1851 Micro ATX Motherboard comes with a 3-year Warranty.
