-9%
GIGABYTE B760M D2H DDR4 LGA 1700 12TH GEN MICRO-ATX MOTHERBOARD
Original price was: 17,000.00৳ .14,500.00৳ Current price is: 14,500.00৳ .
GIGABYTE B760M D2H DDR4
Original price was: 18,800.00৳ .16,800.00৳ Current price is: 16,800.00৳ .

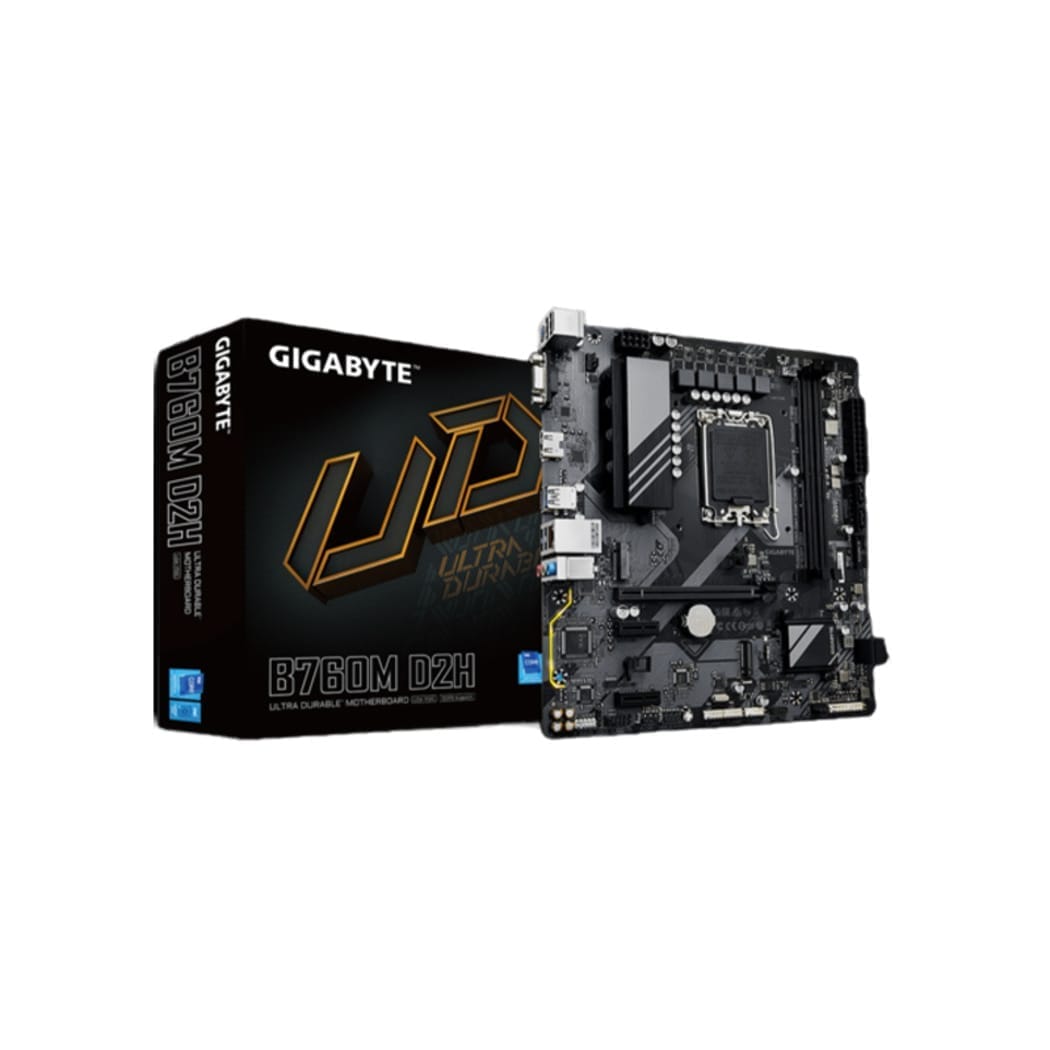

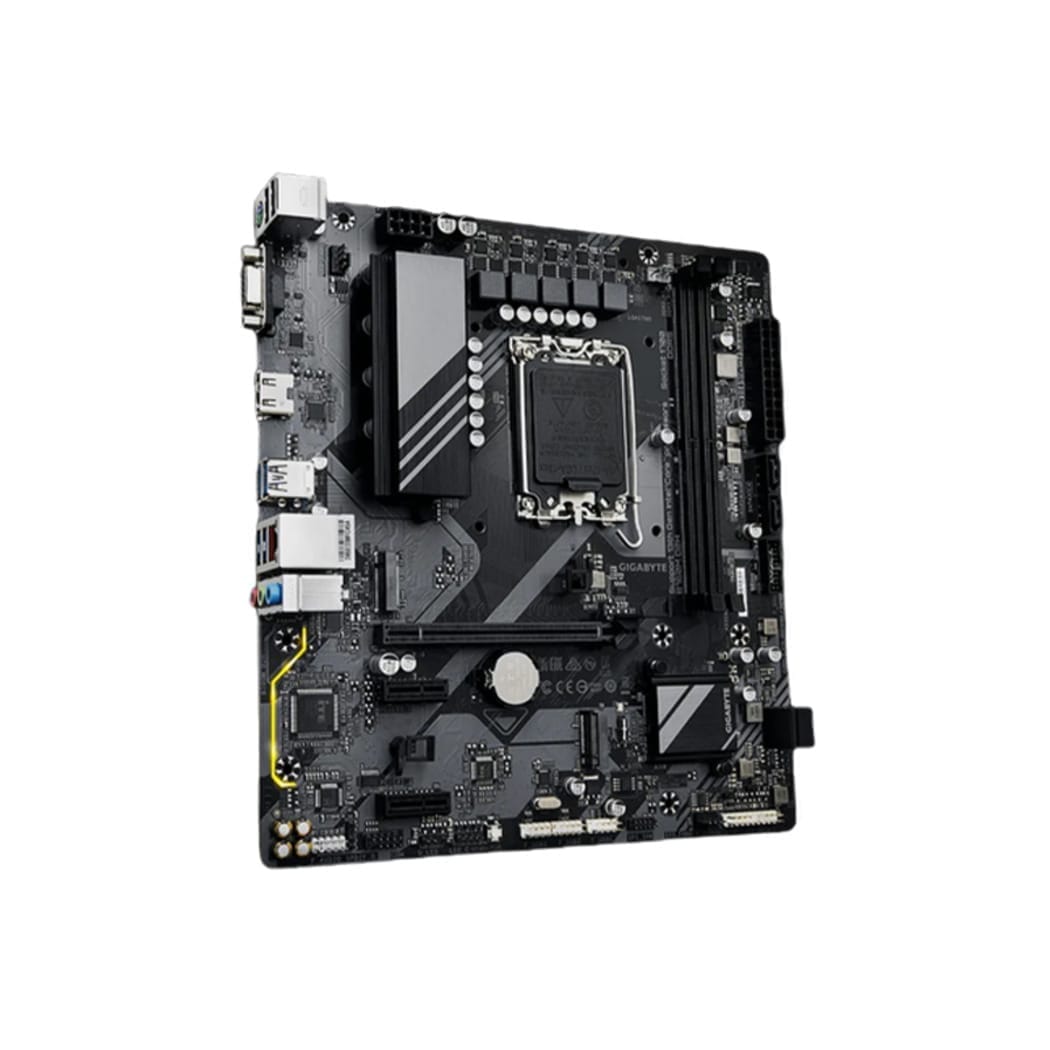

GIGABYTE B760M D2H DDR5 13TH & 12TH GEN INTEL MOTHERBOARD
Original price was: 17,200.00৳ .15,700.00৳ Current price is: 15,700.00৳ .
Key Features
- Support 13th and 12th Gen Series Processors
- Hybrid 6+2+1 Phases Digital VRM Solution
- 2*DIMMs XMP Memory Module Support
- 2*PCIe 4.0 x4 M.2 Connectors
| Brands |
|---|
Description
| Mainboard | |
| Chipset | Intel® B760 Express Chipset |
| Memory | |
| Memory | Support for DDR5 8000(O.C.) /7800(O.C.) /7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules 2 x DDR5 DIMM sockets supporting up to 96 GB (48 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules |
| Graphics | |
| Graphics | Integrated Graphics Processor-Intel® HD Graphics support |
| Audio & Microphone | |
| Audio | Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out |
| Networking & Connectivity | |
| LAN | Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Software | |
| Software Features | Norton® Internet Security (OEM version) LAN bandwidth management software |
| Technical Info | |
| BIOS | 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Ports | |
| Slots | CPU: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 Chipset: 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1 |

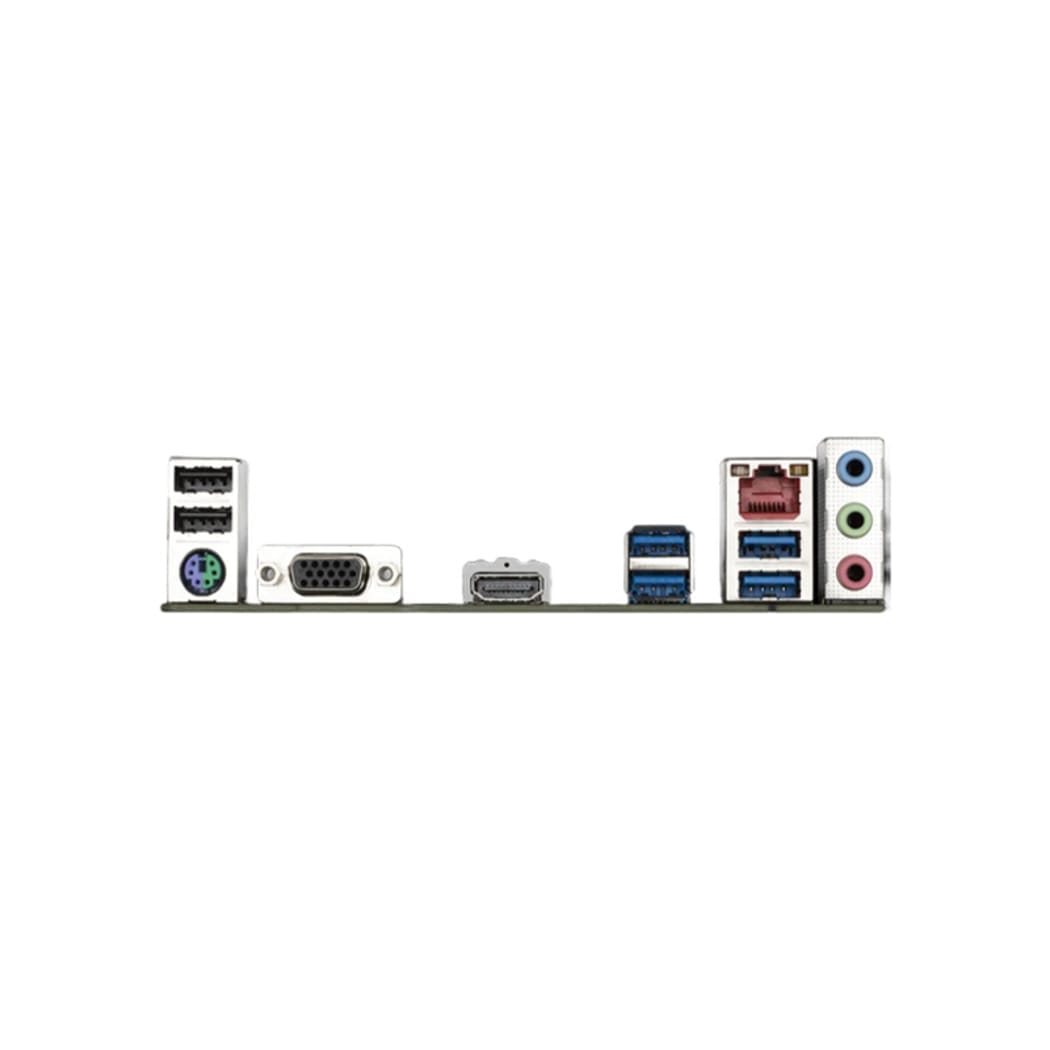

| Internal I/O Ports | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 2 x system fan headers 1 x addressable LED strip header 1 x RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB 3.2 Gen 1 header 3 x USB 2.0/1.1 headers 1 x Trusted Platform Module header 1 x serial port header 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper |
| USB | Chipset: 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header) 4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header) Chipset+2 USB 2.0 Hubs: |
| Physical Specification | |
| Form Factor | Micro ATX Form Factor; 24.4cm x 22.5cm |
| Warranty Information | |
| Warranty | 3 Years |
