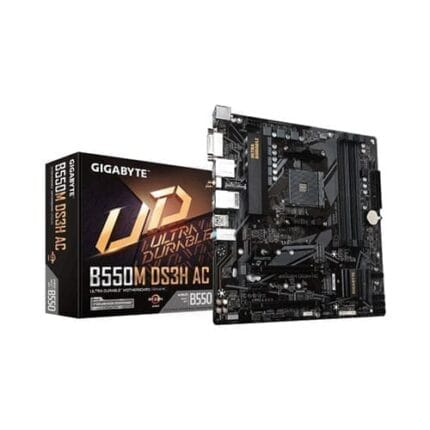

Gigabyte B550M DS3H AC Ultra Durable MATX AMD Motherboard
Original price was: 16,500.00৳ .13,500.00৳ Current price is: 13,500.00৳ .

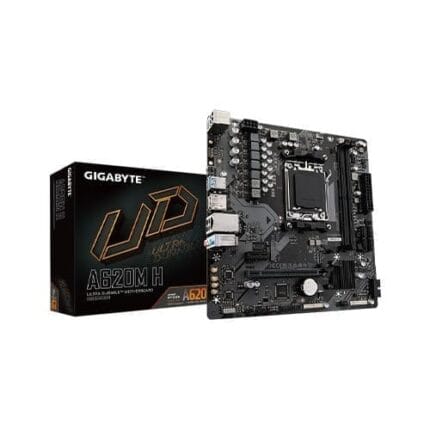

GIGABYTE A620M H AM5 Micro-ATX Motherboard
Original price was: 15,000.00৳ .11,000.00৳ Current price is: 11,000.00৳ .

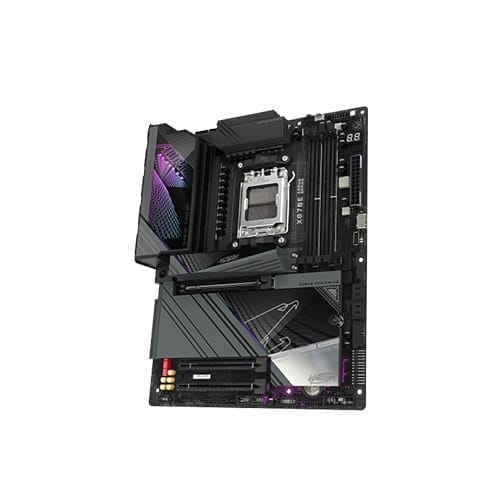

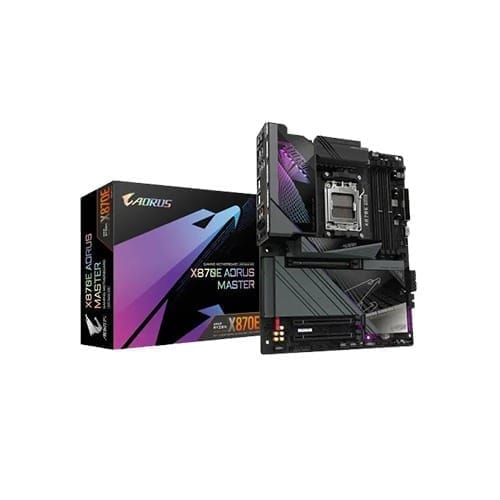

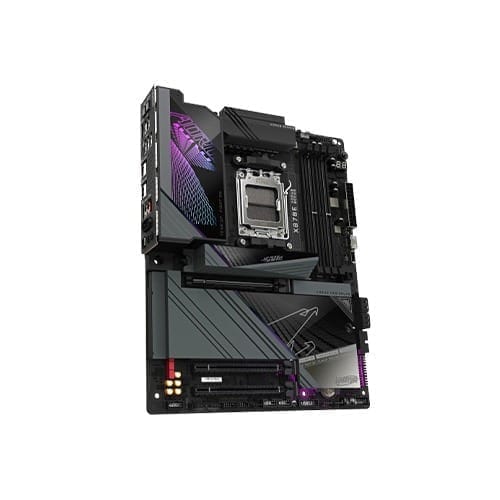

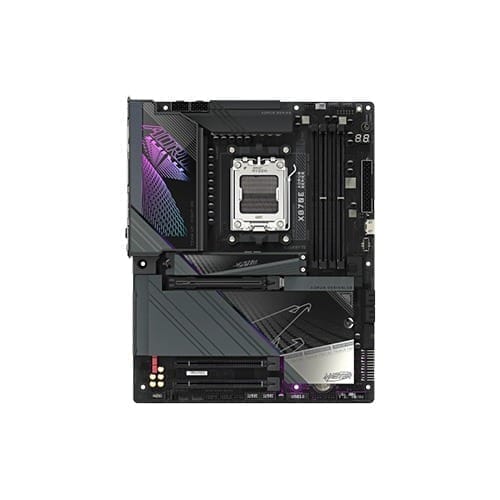

Gigabyte X870E Aorus Master DDR5 AM5 ATX Motherboard
Original price was: 72,500.00৳ .70,000.00৳ Current price is: 70,000.00৳ .
Key Features
- Supported CPU – Ryzen 9000, 8000 & 7000 Series Processors
- Supported RAM – 256GB DDR5
- Graphics Output – 2 x USB4 (USB Type-C), 1 x HDMI
- Chipset – AMD X870E
| Brands |
|---|
Description
| Processor | |
| Supported CPU | AMD Socket AM5, support for : AMD Ryzen 9000, 8000 & 7000 Series Processors |
| Mainboard | |
| Chipset | AMD X870E |
| Memory | |
| Memory Size | Up to 256GB (64GB single DIMM capacity) of system memory |
| Memory Type | DDR5 |
| Memory | Support for DDR5 8600(OC) / 8400(OC) / 8200(OC) / 8000(OC) / 7800(OC) / 7600(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6666(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules |
| Storage | |
| Supported Storage | 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs: AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs 2 x M.2 connectors (M2B_CPU, M2C_CPU), integrated in the CPU, 1 x M.2 connector (M2D_SB), integrated in the Chipset, br> supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSDs |
| Graphics | |
| Graphics | Integrated Graphics Processor with AMD Radeon Graphics support+ASMedia USB4 Controller: – 2 x USB4 USB Type-C ports, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840×2160@240 Hz * Support for DisplayPort 1.4 version and HDR |
| Audio & Microphone | |
| Audio | 2 x audio jacks |
| Networking & Connectivity | |
| Wireless Connectivity | Qualcomm Wi-Fi 7 QCNCM865 – 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands – BLUETOOTH 5.3 – Support for 11be 320MHz wireless standard (Actual data rate may vary depending on environment and equipment.) * Wi-Fi 7 features require Windows 11 SV3 to function properly. (There is no support driver for Windows 10.) ** Wi-Fi 7 channels on 6 GHz band availability depends on individual country’s regulations. |
| LAN | Realtek 5GbE LAN chip (5 Gbps/2.5 Gbps/1 Gbps/100 Mbps) |
| Software | |
| Bundled Software | Norton® Internet Security (OEM version) LAN bandwidth management software |
| Technical Info | |
| Model | X870E Aorus Master |
| BIOS | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Ports | |
| Slots | 4 DIMMs |

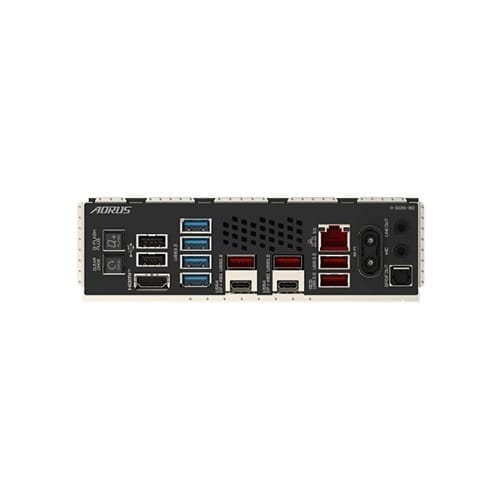

| Connector | Back Panel Connectors 1 x Q-Flash Plus button 1 x Clear CMOS button 1 x HDMI port (Note) 2 x USB4 USB Type-C ports (DisplayPorts (Note)) 4 x USB 3.2 Gen 2 Type-A ports (red) 4 x USB 3.2 Gen 1 ports 2 x USB 2.0/1.1 ports 1 x RJ-45 port 2 x antenna connectors (2T2R) 2 x audio jacks 1 x optical S/PDIF Out connector (Note) Actual support may vary by CPU. TPM (Trusted Platform Module ) |
| Internal I/O Ports | 1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x CPU fan header 1 x CPU fan/water cooling pump header 4 x system fan headers 2 x system fan/water cooling pump headers 4 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 4 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C header, with USB 3.2 Gen 2×2 support 2 x USB 3.2 Gen 1 headers 2 x USB 2.0/1.1 headers 1 x noise detection header 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 1 x HDMI port (Note) 1 x power button 1 x reset button 1 x reset jumper 1 x Clear CMOS jumper 2 x temperature sensor headers Voltage Measurement Points (Note) Actual support may vary by CPU. |
| USB | CPU+ASMedia USB4 controller: – 2 x USB4 USB Type-C ports on the back panel |
| HDMI | 1 x HDMI |
| Ports & Connectors | CPU: – 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel Chipset+USB 3.2 Gen 1 Hub: – 4 x USB 3.2 Gen 1 ports on the back panel Chipset: – 1 x USB Type-C port with USB 3.2 Gen 2×2 support, available through the internal USB header – 3 x USB 3.2 Gen 2 Type-A ports (red) on the back panel – 4 x USB 3.2 Gen 1 ports available through the internal USB headers – 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers) |
| Special Features | |
| Special Features | Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Q-Flash Plus Support for Smart Backup |
| Physical Specification | |
| Expansion Slots | 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x16 mode * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. * The PCIEX16 slot shares bandwidth with the M2B_CPU and M2C_CPU connectors. The PCIEX16 slot operates at up to x8 mode when a device is installed in the M2B_CPU or M2C_CPU connector. AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode Chipset: |
| Form Factor | ATX Form Factor; 30.5cm x 24.4cm |
| Others | |
| Other Features | RAID RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices * RAID 5 is only available on AMD Ryzen 9000 Series Processors. RAID 0, RAID 1, and RAID 10 support for SATA storage devices |
| Warranty Information | |
| Warranty | 3-Years |
