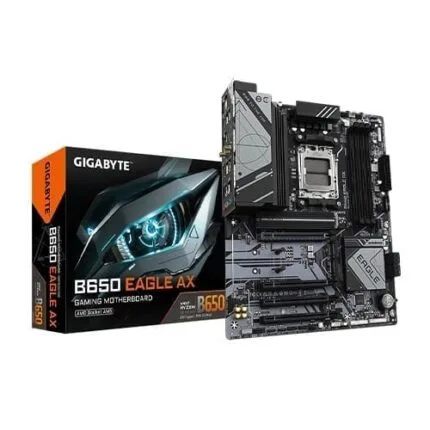

GIGABYTE B650 EAGLE AX AM5 AMD DDR5 Motherboard
Original price was: 33,000.00৳ .27,500.00৳ Current price is: 27,500.00৳ .
GIGABYTE B650M AORUS ELITE AM5 AMD DDR5 MOTHERBOARD
Original price was: 29,500.00৳ .22,000.00৳ Current price is: 22,000.00৳ .

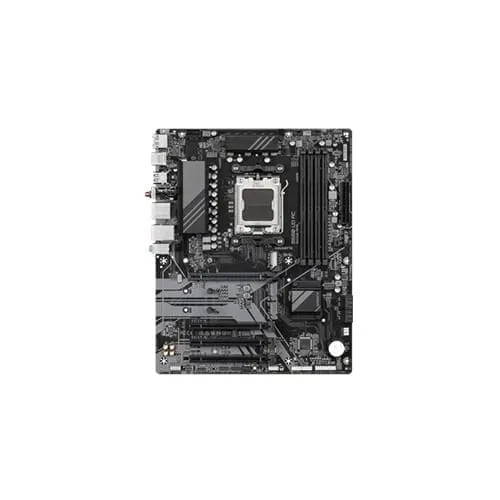

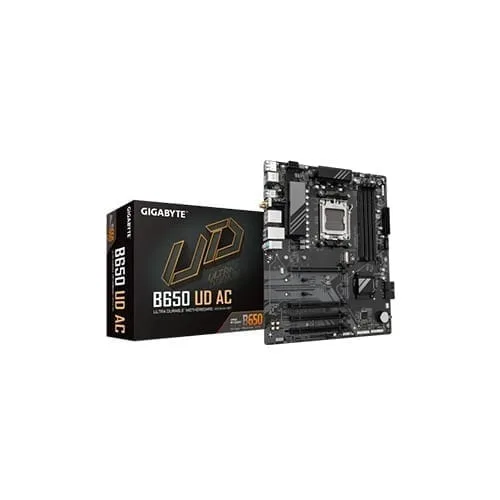

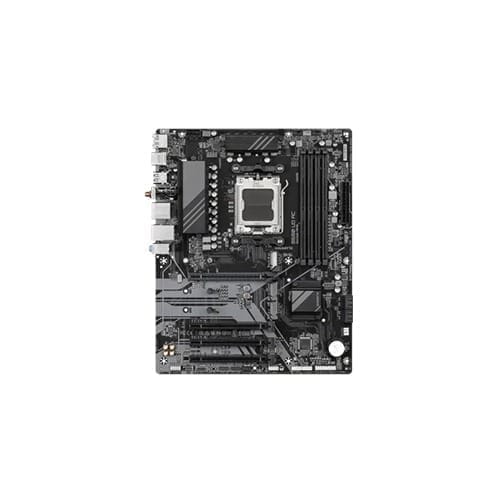

GIGABYTE B650 UD AC AM5 ATX Motherboard
Original price was: 26,000.00৳ .24,600.00৳ Current price is: 24,600.00৳ .
Key Features
- Chipset AMD B650
- 1 x 256 Mbit flash
- ATX Form Factor
- Realtek Audio CODEC
| Brands |
|---|
Description
| Processor | |
| Supported CPU | AMD Socket AM5, support for: AMD Ryzen 7000 / Ryzen 8000 / Ryzen 9000 Series Processors |
| Mainboard | |
| Chipset | AMD B650 |
| Memory | |
| Memory | 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800 MT/s memory modules Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules |
| Graphics | |
| Graphics | Graphics supporting a maximum resolution of 3840×2160@144 Hz * Support for DisplayPort 1.4 version. supporting a maximum resolution of 4096×2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. ** Support for native HDMI 2.1 TMDS compatible ports. |
| Networking & Connectivity | |
| LAN | Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps) |
| WiFi | AzureWave Wi-Fi AW-CB304NF/AW-CB515NF (Realtek RTL8821CE) – WIFI 802.11a, b, g, n, ac, supporting 2.4/5 GHz Dual-Band – BLUETOOTH 5.0 – Support for 11ac wireless standard (Actual data rate may vary depending on environment and equipment.) |
| Bluetooth | – BLUETOOTH 5.0 |
| Ports | |
| Slots | PCI 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: – AMD Ryzen 7000 Series Processors support PCIe 4.0 x16 mode – AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode – AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. 2 x PCI Express x16 slots (PCIEX1_1/PCIEX1_2), integrated in the CPU, supporting PCIe 3.0 and running at x1 * The PCIEX1_1 and PCIEX1_2 slots become unavailable when an AMD Ryzen™ 8000 Series-Phoenix 2 processor is used. 1 x PCI Express x16 slot (PCIEX1_3), integrated in the Chipset, supporting PCIe 3.0 and running at x1 |

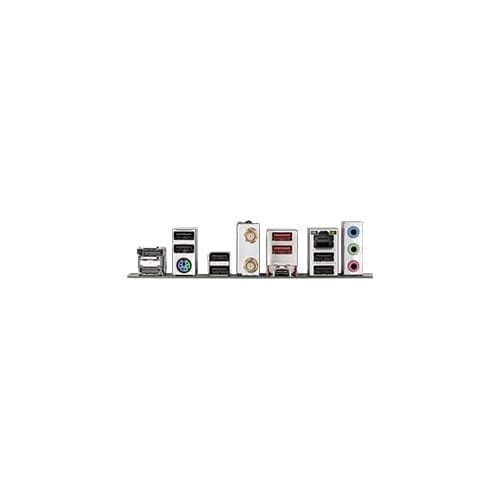

| Internal I/O Ports | Internal I/O Connectors 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x CPU fan/water cooling pump header 2 x system fan headers 1 x system fan/water cooling pump header 3 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 3 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 3 x USB 2.0/1.1 headers 1 x Q-Flash Plus button 1 x serial port header j 1 x Clear CMOS jumper Back Panel Connectors 1 x DisplayPort 1 x HDMI port 1 x PS/2 keyboard/mouse port 2 x SMA antenna connectors (2T2R) 1 x USB Type-C port, with USB 3.2 Gen 1 support |
| USB | – 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel – 1 x USB Type-C port on the back panel, with USB 3.2 Gen 1 support CPU+USB 2.0 Hub: – 4 x USB 2.0/1.1 ports on the back panel Chipset: – 2 x USB 3.2 Gen 1 ports available through the internal USB header – 1 x USB Type-C port with USB 3.2 Gen 1 support, available through the internal USB header – 4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header) Chipset+USB 2.0 Hub: – 4 x USB 2.0/1.1 ports available through the internal USB headers |
| HDMI | 1 x HDMI |
| Physical Specification | |
| Form Factor | ATX Form Factor; 30.5cm x 24.4cm |
| Form Factor | ATX Form Factor; 30.5cm x 24.4cm |
| Warranty Information | |
| Warranty | 3 Years |
