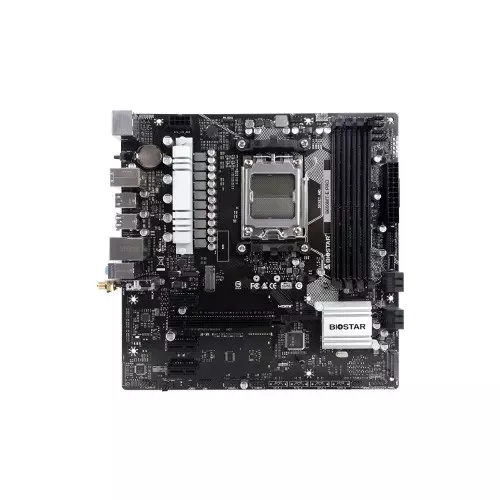

Biostar B650MT-E PRO DDR5 AMD AM5 Socket Motherboard
Original price was: 16,500.00৳ .15,300.00৳ Current price is: 15,300.00৳ .
Key Features
- Model: Biostar B650MT-E PRO
- Supports AMD Ryzen 7000/ 8000 series processors
- AMD B650 single chip architecture
- Supports 4-DIMM DDR5 up to 192 GB Memory
- Supports PCIe 4.0
- Supports PCIe 4.0 M.2 (64Gb/s)
- Supports HDMI 4K2K
- Supports SMART BIOS UPDATE
Description
| Specification | Details |
| Chipset | AMD B650 |
| CPU SUPPORT | Socket AM5 support AMD Ryzen™ 7000 / 8000 series Processors Support for future AMD Ryzen processors with BIOS update |
| MEMORY | AMD Ryzen 7000 / 8000 series Processors: Supports Dual Channel DDR5 6000+(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 4800 4 x DDR5 DIMM Memory Slot, Max. Supports up to 192 GB Memory Each DIMM supports non-ECC 8/ 16/ 24/ 32/ 48 GB DDR5 module |
| INTEGRATED VIDEO | By CPU model Supports DX12 Supports HDCP |
| STORAGE | Total support 2 x M.2 Socket and 4 x SATA (6Gb/s) ports AMD Ryzen 7000 Series Processors 1 x M.2 (Key M) Socket (M2M_CPU) : Supports M.2 Type 2242/ 2260/ 2280 SSD module Supports PCIe 4.0 x4 (64Gb/s) – NVMe/ AHCI SSD AMD B650 Chipset 1 x M.2 (Key M) Socket (M2M_SB) : Support M.2 Type 2280 SSD module Support PCIe 4.0 x 4 (64Gb/s) – NVMe / AHCI SSD 4 x SATA III Connector (6Gb/s) : Supports AHCI & RAID 0, 1, 10 |
| LAN | Realtek RTL8125B 10/ 100/ 1000/ 2500 Mb/s auto negotiation, Half / Full duplex capability |
| AUDIO CODEC | ALC897 7.1 Channels, High Definition Audio, Hi-Fi |
| USB | 2 x USB 3.2 Gen2 Type-C ports (1 on rear I/Os and 1 via internal headers) 1 x USB 3.2 Gen2 port (1 on rear I/Os) 6 x USB 3.2 Gen1 ports (4 on rear I/Os and 2 via internal headers) 6 x USB 2.0 ports (2 on rear I/Os and 4 via internal headers) |
| EXPANSION SLOT | AMD Ryzen 7000 / 8000 Series Processors 1 x PCIe 4.0 x 16 Slot (x16 or x8/x8 mode) 2 x PCIe 4.0 x 1 Slot (x1 mode) AMD B650 Chipset 1 x PCIe 4.0 x 1 Slot (x1 mode) |
| REAR I/O | 2 x WiFi Antenna Ports 1 x PS/2 Keyboard/ Mouse Port 1 x BIOS update Button 1 x HDMI Port (HDMI1.4) 1 x DP Port (DP1.2) 1 x USB 3.2 (Gen2) Type-C Port 1 x USB 3.2 (Gen2) Type-A Port 4 x USB 3.2 (Gen1) Type-A Ports 2 x USB 2.0 Type-A Ports 1 x 2.5G LAN port 3 x Audio Jack |
| INTERNAL I/O | 4 x SATA III Connectors (6Gb/s) 1 x M.2 (E Key) Socket : Supports 2230 type Wi-Fi & Bluetooth module 2 x USB 2.0 Header (each header supports 2 USB 2.0 ports) 1 x USB 3.2 (Gen1) Header (each header supports 2 USB 3.2 (Gen1) ports) 1 x USB 3.2 (Gen2) Type-C Header (each header supports 1 USB 3.2 (Gen2) Type-C ports) 1 x 8-Pin Power Connector 1 x 24-Pin Power Connector 1 x CPU Fan Connector 1 x CPU water cooling connector (CPU_OPT) 1 x System Fan Connector 1 x Front Panel Header 1 x Front Audio Header 1 x Internal Stereo Speaker Header 1 x Clear CMOS Header 1 x COM Port Header 1 x TPM Header 2 x LED Header (5V) 1 x LED Header (12V) |
| H/W MONITORING | CPU / System Temperature Monitoring CPU / System Fan Monitoring Smart / Manual CPU Fan Control CPU/DDR Voltage Monitoring |
| DIMENSION | Micro ATX Form Factor Dimension: 24.4cmx24.4cm ( W x L ) |
| OS SUPPORT | Supports Windows 10(64bit) / 11(64bit) |
| BUNDLE SOFTWARE | BullGuard |
| ACCESSORIES | 2 x SATA Cable 1 x I/O Shield 1 x DVD Driver 1 x Quick Guide 1 x WiFi antenna accessories |
| Warranty | 03 Years |
Features
- AMD B650 Chipset: Powering performance for AMD Ryzen™ 7000 / 8000 series processors.
- Socket AM5 Support: Compatible with the latest AMD Ryzen™ CPUs.
- DDR5 Memory Support: Up to 192 GB with speeds up to DDR5 6000+(OC).
- High-Speed Storage: Dual M.2 and SATA III ports for fast data access.
- PCIe 4.0 Connectivity: Future-proof your system with PCIe 4.0 x16 and x1 slots.
- Integrated Video Support: Enjoy advanced graphics capabilities with DX12 support.
- Networking: Realtek RTL8125B for 2.5G LAN connectivity.
- Audio Excellence: ALC897 codec for immersive 7.1 channel HD audio.
- USB Ports: Includes USB 3.2 Gen2 Type-C and Gen1 ports for versatile connectivity.
- Expansion Options: Multiple PCIe slots for additional cards and peripherals.
- Easy BIOS Updates: Convenient BIOS update button for hassle-free upgrades.
- Multi-Display Support: HDMI 1.4 and DP 1.2 ports for multiple monitor setups.
- High-Quality Components: Designed with reliability and performance in mind.
- Compact Form Factor: Micro ATX design (24.4cm x 24.4cm) fits various PC cases.
- Cooling Solutions: Dedicated connectors for CPU and system fans.
- Advanced Monitoring: Keep track of CPU/system temperatures and fan speeds.
- User-Friendly Interfaces: Includes front panel headers and clear CMOS options.
- Operating System Support: Compatible with Windows 10 and 11 (64-bit).
- Bundled Software: Comes with BullGuard security software for added protection.
- Accessories Included: Includes SATA cables, I/O shield, DVD driver, and WiFi antenna accessories.
- Future-Ready Technology: Supports upcoming AMD Ryzen processors via BIOS updates.
