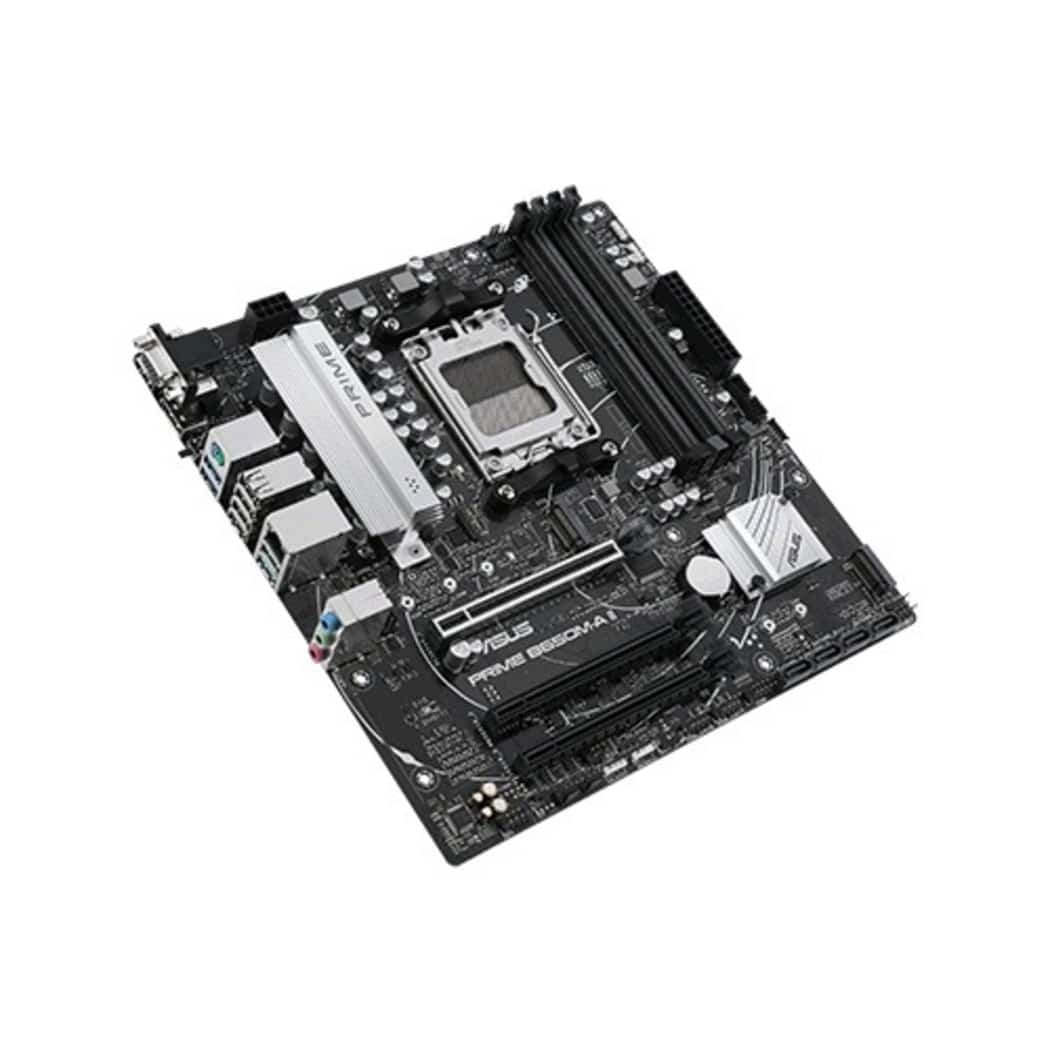

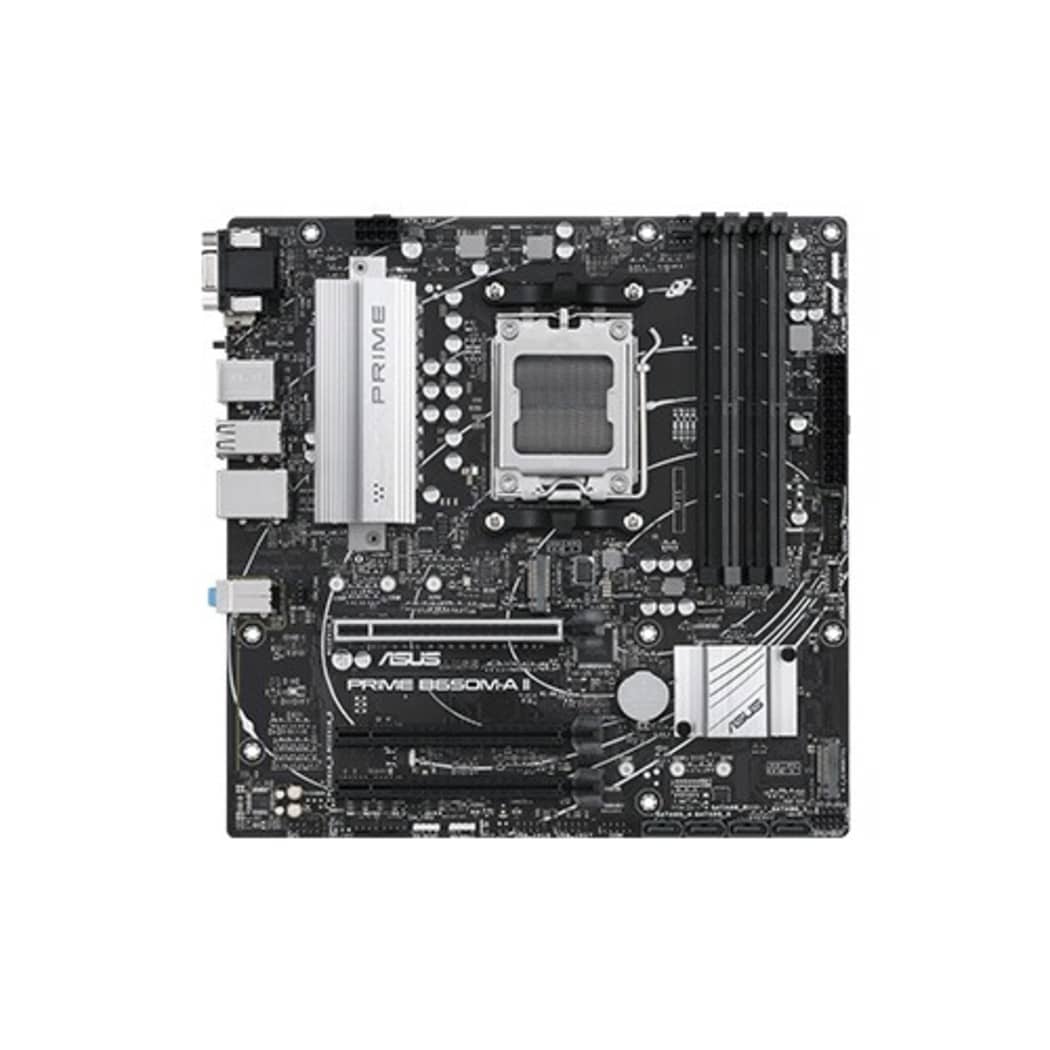

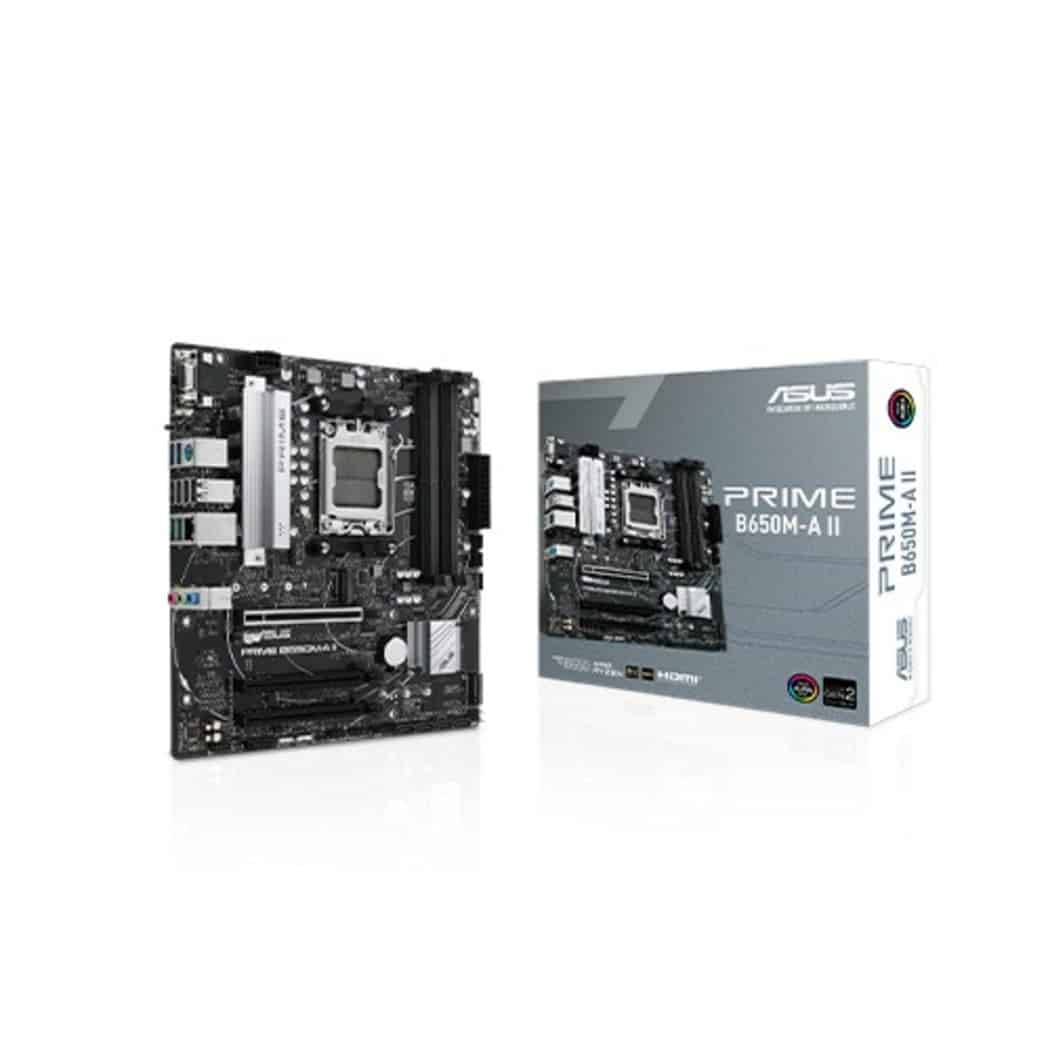

Asus PRIME B650M-A II DDR5 AM5 mATX Motherboard
Original price was: 19,700.00৳ .18,400.00৳ Current price is: 18,400.00৳ .
- CPU Socket: AMD AM5
- Supported RAM: 4x DDR5, up to 192GB,
- Connectivity: Realtek 2.5Gb Ethernet
- Features: 1 x DisplayPort, 1 x HDMI port
| Brands |
|---|
| Processor | |
| Supported CPU | AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors |
| Mainboard | |
| Chipset | AMD B650 |
| Memory | |
| Memory | 4 x DIMM, Max. 192GB, DDR5 7600+(OC)/ 7200(OC)/7000(OC)/6800(OC)/6600(OC)/ 6400(OC)/6200(OC)/6000(OC)/5800(OC)/ 5600(OC)/5400(OC)/5200/5000/4800 ECC and Non-ECC, Un-buffered |
| Storage | |
| Storage | Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports AMD Ryzen 9000 & 7000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) AMD Ryzen 8000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) AMD B650 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10. |
| Graphics | |
| Graphics | 1 x DisplayPort 1 x VGA port 1 x HDMI port Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications. Supports max. 8K@60Hz as specified in DisplayPort 1.4. Supports 4K@60Hz as specified in HDMI 2.1. |
| Audio & Microphone | |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking – Supports up to 24-Bit/192 kHz playback Audio Features |
| Networking & Connectivity | |
| Ethernet | 1 x Realtek 2.5Gb Ethernet |
| Software | |
| Software Features | ASUS Exclusive Software Armoury Crate – Aura Creator – Aura Sync – Fan Xpert 2+ – Power Saving AI Suite 3 ASUS CPU-Z ASUS EZ DIY |
| Technical Info | |
| Model | PRIME B650M-A II |
| Management | WOL by PME, PXE |
| Operating System Support | Windows 11, Windows 10 64-bit |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Ports | |

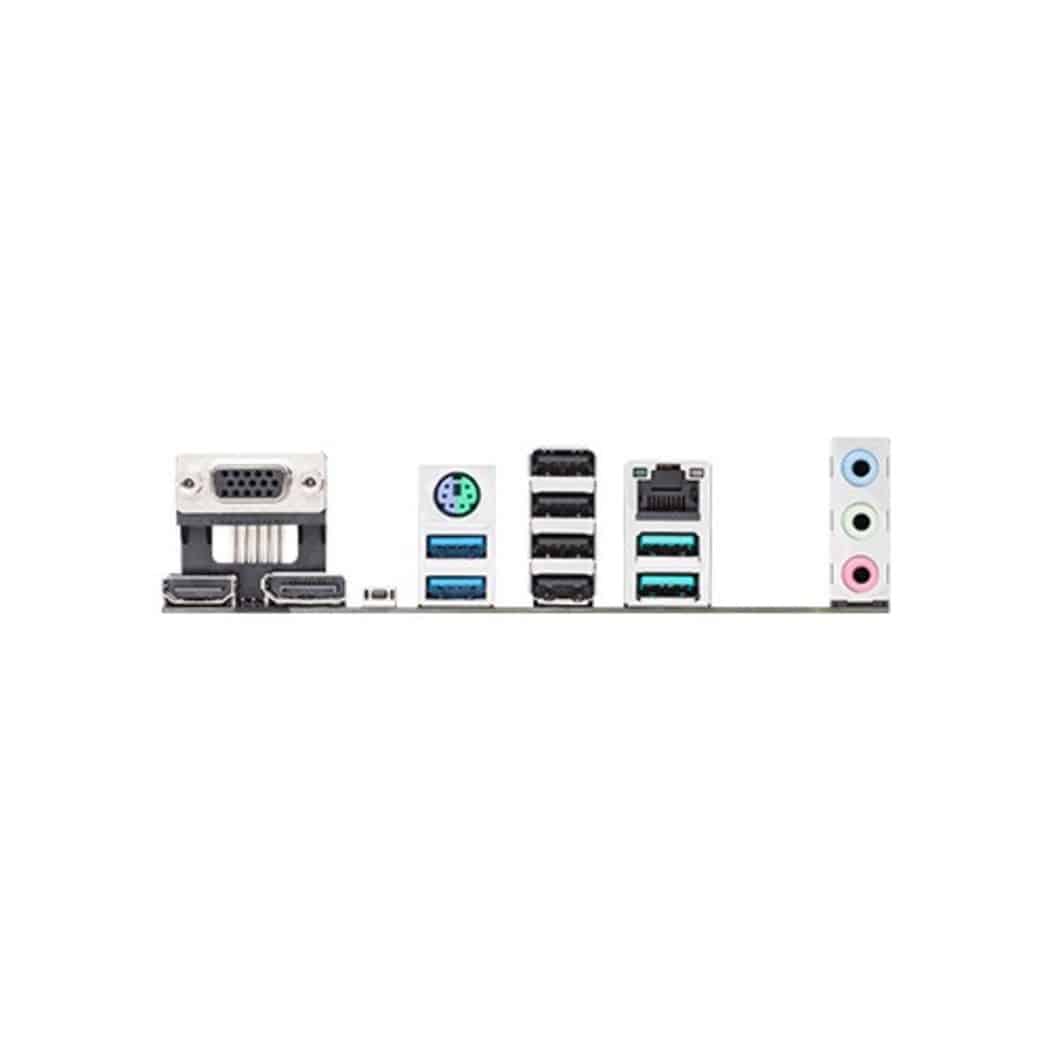

| I/O Port | Back Panel I/O Ports 2 x USB 3.2 Gen 2 ports (2 x Type-A) 2 x USB 3.2 Gen 1 ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) 1 x DisplayPort 1 x VGA port 1 x HDMI port 1 x Realtek 2.5Gb Ethernet port 3 x Audio jacks 1 x BIOS FlashBack button 1 x PS/2 Keyboard/Mouse combo port Internal I/O Connectors Power related Storage related 1 x USB 3.2 Gen 1 connector (supports USB Type-C ) Miscellaneous |
| USB | Rear USB (Total 8 ports) 2 x USB 3.2 Gen 2 ports (2 x Type-A) 2 x USB 3.2 Gen 1 ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) Front USB (Total 7 ports) |
| Special Features | |
| Special Features | ASUS 5X PROTECTION III – DIGI+ VRM – LANGuard – Overvoltage Protection – Q-DIMM ASUS Thermal Solution Aura Sync |
| Physical Specification | |
| Color | Black |
| Expansion Slots | AMD Ryzen 9000 & 7000 Series Desktop Processors 1 x PCIe 4.0 x16 slot (supports x16 mode) AMD Ryzen 8000 Series Desktop Processors AMD B650 Chipset |
| Form Factor | mATX Form Factor 9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm ) |
| Others | |
| Accessories | Cables 2 x SATA 6Gb/s cables Miscellaneous Documentation |
| Warranty Information | |
| Warranty | 3 Years |
