-8%
Asus Prime A520M-A Micro ATX AM4 Motherboard
Original price was: 12,500.00৳ .11,000.00৳ Current price is: 11,000.00৳ .
Asus Prime B450M-A II AM4 Micro-ATX AMD Motherboard
Original price was: 13,600.00৳ .12,500.00৳ Current price is: 12,500.00৳ .

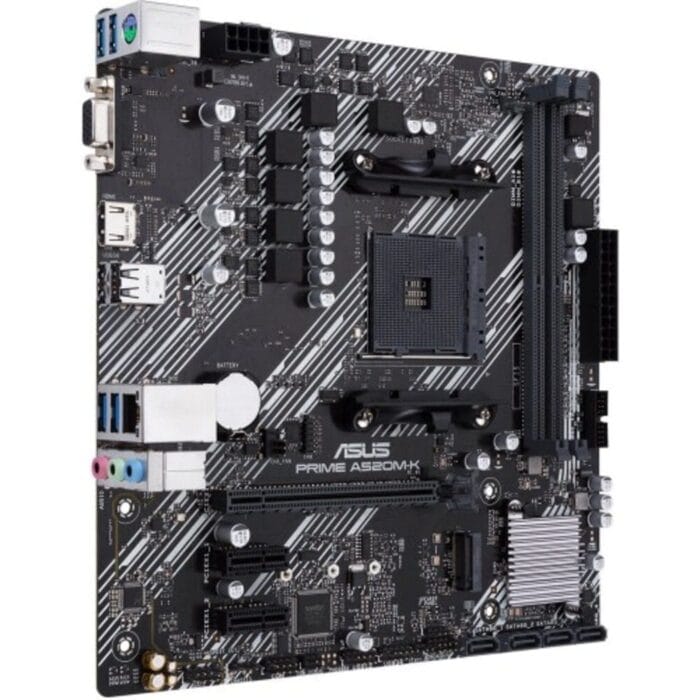

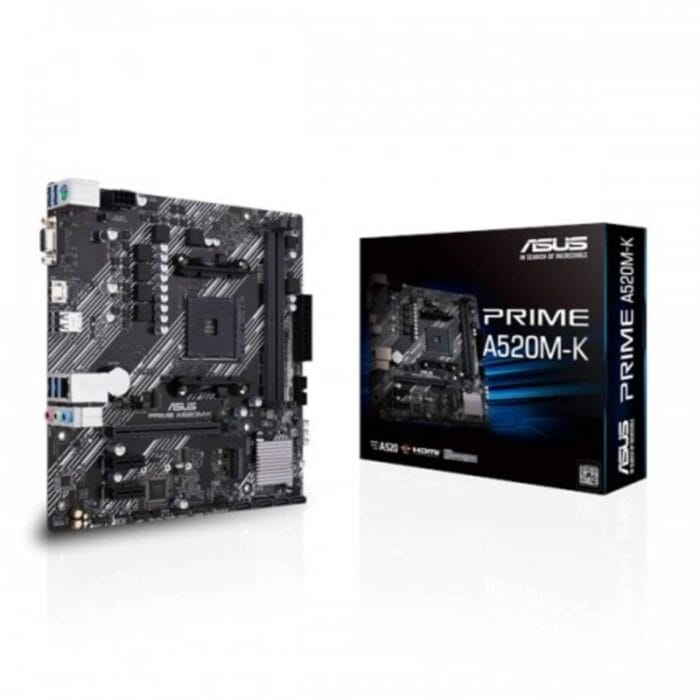

Asus Prime A520M-K AM4 Micro-ATX AMD Motherboard
Original price was: 9,900.00৳ .9,100.00৳ Current price is: 9,100.00৳ .
| Brands |
|---|
Description
| Processor | |
| Supported CPU | AMD AM4 Socket for AMD Ryzen 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors |
| Mainboard | |
| Chipset | AMD A520 |
| Memory | |
| Memory | Type Dual Channel DDR4 Memory Technology Slots 2 x DIMM Supported Memory 4600(O.C)/4400(O.C)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory Maximum Mamory 64GB, DDR4 |
| Storage | |
| Supported Storage | Total supports 2 x M.2 slot(s) and 4 x SATA 6Gb/s ports AMD Ryzen 5000 Series/ 3000 Series Desktop Processors : 1 x M.2_1 socket 3, with M Key, Type 2242/2260/ 2280 /22110(PCIE 4.0 x4 and SATA modes) storage devices support AMD Ryzen 4000 G-Series Processors : 1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 3.0 x4 and SATA modes) storage devices support AMD B550 Chipset : 1 x M.2_2 socket 3, with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes) storage devices support 4 x SATA 6Gb/s port(s), Support Raid 0, 1, 10 |
| Graphics | |
| Graphics | 1 x D-Sub 1 x HDMI 2.1(4K@60HZ) |
| Audio & Microphone | |
| Audio | Realtek ALC887/897 7.1 Surround Sound High Definition Audio CODEC * – Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback Audio Feature : – Audio Shielding – Dedicated audio PCB layers * Choose the chassis with HD audio module in front panel to support 8-channel audio output. |
| Networking & Connectivity | |
| LAN | Realtek RTL8111H 1GB Ethernet ASUS LANGuard |
| Technical Info | |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Ports | |
| Slots | PCI 3rd Gen AMD Ryzen and 3rd Gen AMD Ryzen with Radeon Graphics Processors 1 x PCIe 3.0 x16 (x16 mode) AMD A520 Chipset 2 x PCIe 3.0 x1 M.2 Socket 1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 3.0 x4 and SATA modes) storage devices support |
| Internal I/O Ports | 1 x CPU Fan connector(s) 1 x Chassis Fan connector(s) 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x SPI TPM header 4 x SATA 6Gb/s connector(s) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin EATX 12V Power connectors 1 x Front panel audio connector(s) (AAFP) 1 x Clear CMOS jumper(s) 1 x System panel connector 1 x COM port header 1 x Speaker connector |
| External I/O Ports | Back I/O Ports: 1 x PS/2 keyboard/mouse combo port(s) 1 x D-Sub 1 x HDMI 1 x LAN (RJ45) port(s) 4 x USB 3.2 Gen 1 (blue) Type-A 2 x USB 2.0 3 x Audio jack(s) |
| USB | Rear USB Port ( Total 6 ) 4 x USB 3.2 Gen 1 port(s)(4 x Type-A) 2 x USB 2.0 port(s)(2 x Type-A) Front USB Port ( Total 6 ) 2 x USB 3.2 Gen 1 port(s)(2 x Type-A) 4 x USB 2.0 port(s)(4 x Type-A) |
| HDMI | 1 x HDMI 2.1(4K@60HZ) |
| Physical Specification | |
| Form Factor | mATX Form Factor 8.9 inch x 8.7 inch ( 22.6 cm x 22.1 cm ) |
| Warranty Information | |
| Warranty | 03 Years Warranty |
