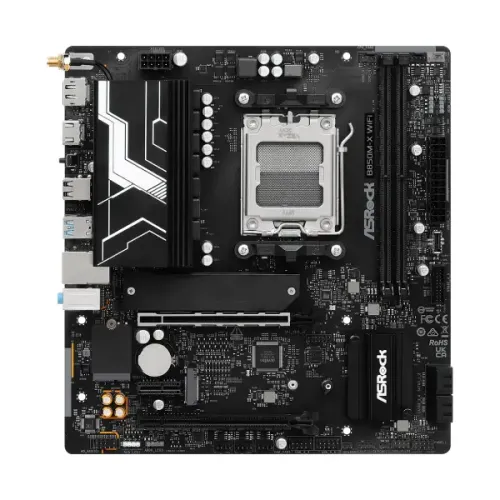

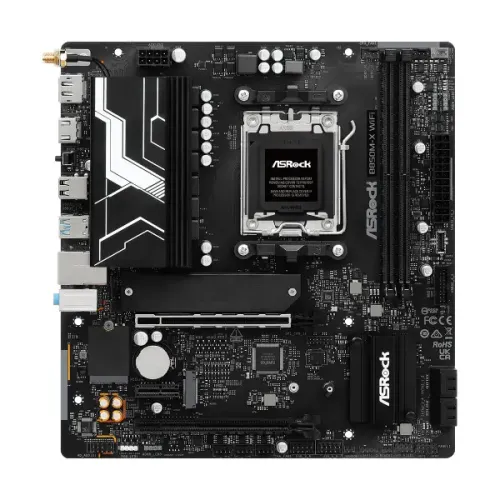

ASRock B850M-X WiFi AM5 DDR5 Micro ATX Motherboard
Original price was: 20,350.00৳ .18,500.00৳ Current price is: 18,500.00৳ .
Key Features
- Model: B850M-X WiFi
- Supported CPU: Ryzen 9000, 8000, & 7000 Series Processors for Socket AM5
- Supported RAM: 2x DDR5, Up to 8000+(OC), Max 128GB
- Graphics Output: 1x HDMI 2.1, 1x DisplayPort 1.4
- Features: 2.5G LAN, 802.11axe Wi-Fi 6E Module, Bluetooth 5.2
Description
Specification
| Basic Information | ||
| Supported CPU | Supports AMD Socket AM5 Ryzen 9000, 8000 and 7000 Series Processors | |
| Chipset | AMD B850 | |
| BIOS | 256Mb AMI UEFI Legal BIOS with GUI support | |
| Form Factor | Micro ATX Form Factor: 9.6-in x 8.9-in, 24.4 cm x 22.6 cm | |
| Audio | 7.1 CH HD Audio (Realtek ALC897 Audio Codec) Nahimic Audio | |
| Expansion Slots | ||
| PCI | CPU: – 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode* Chipset: – 1 x PCIe 4.0 x1 Slot (PCIE2)* – 1 x PCIe 4.0 x16 Slot (PCIE3), supports x4 mode* – 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module | |
| M.2 Socket | CPU: – 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode* – 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* Chipset: – 4 x SATA3 6.0 Gb/s Connectors | |
| Memory | ||
| Type | Dual Channel DDR5 Memory Technology | |
| Slots | 2 x DDR5 DIMM Slots | |
| Supported Memory | Supports DDR5 ECC/non-ECC, un-buffered memory up to 8200+(OC) Supports Extreme Memory Profile (XMP) and Extended Profiles for Overclocking (EXPO) memory modules | |
| Maximum Memory | 128GB | |
| Graphics | ||
| Graphics | Integrated AMD RDNA graphics (Actual support may vary by CPU) – 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz – 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 4K 120Hz | |
| Connector & Ports | ||
| HDMI | 1 x HDMI 2.1 | |
| Display Port (s) | 1 x DisplayPort 1.4 | |
| USB (s) | CPU: – 3 x USB 3.2 Gen1 Type-A (Rear) – 1 x USB 2.0 (Rear (USB_2)) Chipset: – 2 x USB 3.2 Gen1 Type-C (1 Rear, 1 Front) – 2 x USB 3.2 Gen1 Type-A (Front) – 5 x USB 2.0 (1 Rear (USB_1), 4 Front) | |
| LAN Port (s) | – 2.5 Gigabit LAN 10/100/1000/2500 Mb/s – Dragon RTL8125BG – Supports Dragon 2.5G LAN Software – Smart Auto Adjust Bandwidth Control – Visual User Friendly UI – Visual Network Usage Statistics – Optimized Default Setting for Game, Browser, and Streaming Modes – User Customized Priority Control | |
| Wireless Communication module | – 802.11axe Wi-Fi 6E Module – Supports IEEE 802.11a/b/g/n/ac/ax/axe – Supports Dual-Band 2×2 with extended 6GHz band support* – 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology – Supports Bluetooth 5.2 – Supports MU-MIMO | |
| Supported Storage | CPU: – 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode* – 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* Chipset: – 4 x SATA3 6.0 Gb/s Connectors | |
| RAID | – Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices – Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices | |
| Audio | 1 x Front Panel Audio Connector | |
| Internal I/O Ports | Rear Panel I/O: – 2 x Antenna Ports – 1 x HDMI Port – 1 x DisplayPort 1.4 – 1 x USB 3.2 Gen1 Type-C Port – 3 x USB 3.2 Gen1 Type-A Ports – 2 x USB 2.0 Ports – 1 x RJ-45 LAN Port – 1 x BIOS Flashback Button – HD Audio Jacks: Line in / Front Speaker / Microphone | |
| Others | ||
| Special Features | Superb Productivity – PCIe Gen5 (M.2) – Dual Channel DDR5 Rock-Solid Durability – 6+1+1 Power Phase, Dr.MOS for VCore Ultrafast Connectivity – 2.5G LAN, 802.11axe Wi-Fi 6E Module EZ Update – BIOS Flashback Button – ASRock Auto Driver Installer EZ Troubleshooter – ASRock Post Status Checker | |
| Bundled Software | Software – ASRock Motherboard Utility (A-Tuning) – ASRock Dragon 2.5G LAN Software – ASRock Polychrome SYNC UEFI – ASRock EZ Mode – ASRock Full HD UEFI – ASRock Auto Driver Installer – ASRock Instant Flash | |
| Warranty Information | ||
