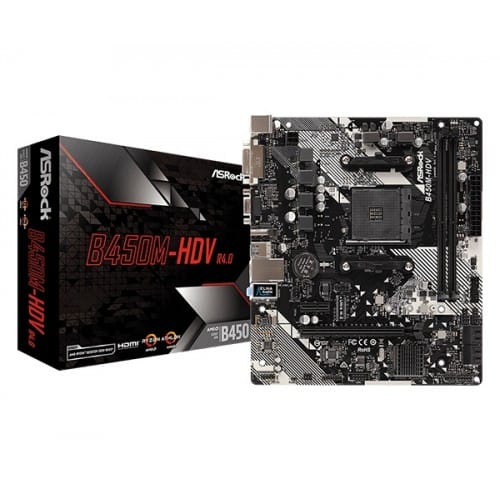

ASRock B450M-HDV R4.0 AMD Motherboard
Original price was: 8,570.00৳ .8,100.00৳ Current price is: 8,100.00৳ .
Key Features
- Model: ASRock B450M-HDV R4.0
- Memory 32 GB
- AMD Promontory B450
- Windows 10; 64-bit
- 1 PCIe 3.0 x16, 1 PCIe 2.0 x1
Description
Specification
| Basic Information | ||
| Supported CPU | – AMD AM4 Socket – Digi Power design – Supports CPU up to 105W | |
| Chipset | – AMD Promontory B450 | |
| BIOS | – 128Mb AMI UEFI Legal BIOS with GUI support – SMBIOS 2.3 support | |
| Form Factor | – Micro ATX Form Factor: 9.1-in x 8.1-in, 23.1 cm x 20.6 cm | |
| Expansion Slots | ||
| PCI | AMD Ryzen series CPUs (Summit Ridge and Pinnacle Ridge) – 1 x PCI Express 3.0 x16 Slot (PCIE2: x16 mode)* AMD Ryzen series CPUs (Raven Ridge) – 1 x PCI Express 3.0 x16 Slot (PCIE2: x8 mode)* AMD Athlon series CPUs – 1 x PCI Express 3.0 x16 Slot (PCIE2: x4 mode)* – 1 x PCI Express 2.0 x1 Slot | |
| M.2 Socket | – 1 x Screw for M.2 Socket – 1 x Ultra M.2 Socket, supports M Key type 2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s) (with Summit Ridge, Raven Ridge and Pinnacle Ridge) or Gen3 x2 (16 Gb/s) (with Athlon 2xxGE series APU)* | |
| Memory | ||
| Type | – Dual Channel DDR4 Memory Technology | |
| Slots | – 2 x DDR4 DIMM Slots – 15μ Gold Contact in DIMM Slots | |
| Supported Memory | For Ryzen Series CPUs (Raven Ridge), ECC is only supported with PRO CPUs. | |
| Graphics | ||
| Max Shared Memory | – Max Shared memory supports up to 16GB – The Max shared memory 16GB requires 32GB system memory installed. | |
| Connector & Ports | ||
| HDMI | – 1 x HDMI Port | |
| D-Sub (s) | – Supports D-Sub with max. resolution up to 2048×1536 @ 60Hz – 1 x D-Sub Port | |
| DVI-D (s) | – Supports DVI-D with max. resolution up to 1920×1200 @ 60Hz – 1 x DVI-D Port | |
| USB (s) | – 6 USB 3.1 Gen1 (2 Front, 4 Rear) – 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection) – 1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports) (Supports ESD Protection) – 2 x USB 2.0 Ports (Supports ESD Protection) – 4 x USB 3.1 Gen1 Ports (Supports ESD Protection) | |
| LAN Port (s) | – 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) | |
| Supported Storage | – 4 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug – 1 x Ultra M.2 Socket, supports M Key type 2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s) (with Summit Ridge, Raven Ridge and Pinnacle Ridge) or Gen3 x2 (16 Gb/s) (with Athlon 2xxGE series APU)- Supports NVMe SSD as boot disks – Supports ASRock U.2 Kit | |
| Audio | – 7.1 CH HD Audio (Realtek ALC887 Audio Codec) – Supports Surge Protection – ELNA Audio Caps | |
| Internal I/O Ports | – 1 x PS/2 Mouse/Keyboard Port – 1 x D-Sub Port – 1 x DVI-D Port – 1 x HDMI Port – 2 x USB 2.0 Ports (Supports ESD Protection) – 4 x USB 3.1 Gen1 Ports (Supports ESD Protection) – 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) – HD Audio Jacks: Line in / Front Speaker / Microphone – 1 x COM Port Header – 1 x Chassis Intrusion and Speaker Header – 1 x CPU Fan Connector (4-pin)* – 2 x Chassis Fan Connectors (1 x 3-pin, 1 x 4-pin)** – 1 x 24 pin ATX Power Connector – 1 x 4 pin 12V Power Connector – 1 x Front Panel Audio Connector – 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection) – 1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports) (Supports ESD Protection) | |
| TPM (Trusted Platform Module ) | 1 x TPM Header | |
| Warranty Information | ||
| Manufacturing Warranty | 03 Years warranty | |
