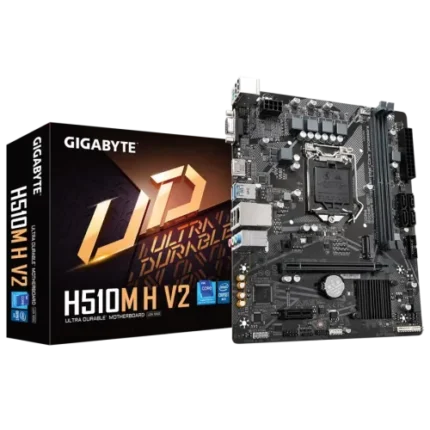

GIGABYTE H510M H V2 11th/10th Gen Micro ATX Motherboard
Original price was: 10,090.00৳ .9,300.00৳ Current price is: 9,300.00৳ .

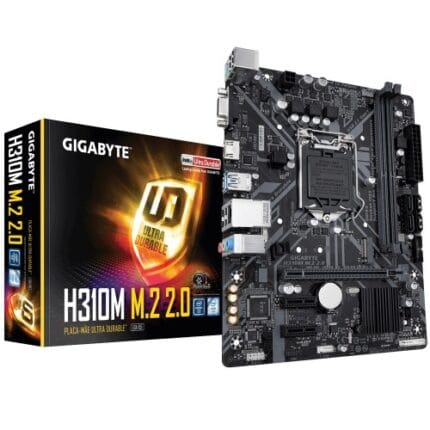

Gigabyte H310M M.2 9th Gen Micro ATX Motherboard
Original price was: 9,980.00৳ .9,200.00৳ Current price is: 9,200.00৳ .

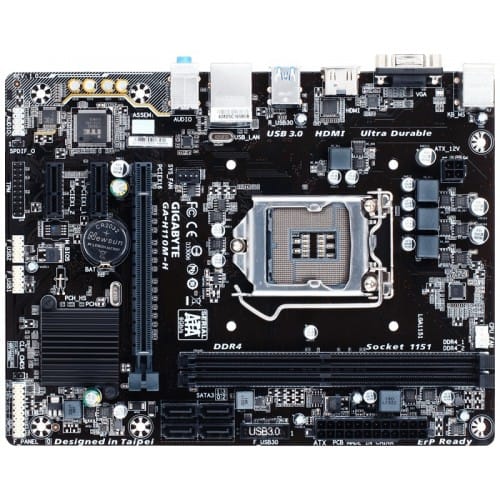

Gigabyte GA-H110M-H Micro ATX Motherboard
Original price was: 9,980.00৳ .9,200.00৳ Current price is: 9,200.00৳ .
Key Features
- Model: GA-H110M-H
- CPU: 7th/ 6th Generation Intel Processors
- Chipset: Intel H110 Express
- 2 x DDR4 DIMM
- 3 x PCI Express slot
Description
Specification
| Basic Information | ||
| Supported CPU | Support for 7th/6th Generation Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1151 package * For 7th Generation Intel® Core™ processors support need to update the latest BIOS. L3 cache varies with CPU | |
| Chipset | Intel® H110 Express Chipset | |
| BIOS | 1 x 64 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 | |
| Form Factor | Micro ATX Form Factor; 22.6cm x 17.4cm | |
| Expansion Slots | ||
| PCI | 1 x PCI Express x16 slot, running at x16 (The PCI Express x16 slot conform to PCI Express 3.0 standard.) 2 x PCI Express x1 slots (All of the PCI Express x1 slots conform to PCI Express 2.0 standard.) | |
| Memory | ||
| Type | Dual channel DDR4 memory architecture | |
| Slots | 2 x DIMM | |
| Supported Memory | Support for DDR4 2400/2133 MHz memory modules Support for ECC UDIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC UDIMM 1Rx8/2Rx8/1Rx16 memory modules | |
| Maximum Memory | 32 GB | |
| Graphics | ||
| Graphics | 1 x D-Sub port, supporting a maximum resolution of 1920×1200@60 Hz 1 x HDMI port, supporting a maximum resolution of 4096×2160@24 Hz * Support for HDMI 1.4 version. | |
| Max Shared Memory | 1024 MB | |
| Connector & Ports | ||
| HDMI | 1 x HDMI | |
| D-Sub (s) | 1 x D-Sub | |
| USB (s) | Chipset: 4 x USB 3.0/2.0 ports (2 ports on the back panel, 2 ports available through the internal USB header) 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers) | |
| LAN Port (s) | Realtek® GbE LAN chip (10/100/1000 Mbit) | |
| Supported Storage | Chipset: 4 x SATA 6Gb/s connectors | |
| Audio | Realtek® ALC887 codec High Definition Audio 2/4/5.1/7.1-channel * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver. Support for S/PDIF Out | |
| Internal I/O Ports | 1 x 24-pin ATX main power connector 1 x 4-pin ATX 12V power connector 4 x SATA 6Gb/s connectors 1 x CPU fan header 1 x system fan header 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB 3.0/2.0 header 2 x USB 2.0/1.1 headers 1 x Clear CMOS jumper | |
| TPM (Trusted Platform Module ) | 1 x Trusted Platform Module (TPM) header | |
| Warranty Information | ||
| Manufacturing Warranty | 03 Years | |
Description
Gigabyte GA-H110M-H Micro ATX ultra durable motherboard has the compatibility with 7th/6th i3, i5 & i7 processors. This board also supports dual channel DDR4 maximum 32GB memory and dual Ultra-Fast SATA interface. Focusing on the graphics, it has integrated Intel HD graphics with 1GB shared graphics memory containing the resolution of 1920×1200@60 Hz for D-Sub and 4096×2160@24 Hz for HDMI port. This basic motherboard has the facility of Audio Noise Guard with High Quality Audio Capacitors and Realtek® GbE LAN with cFosSpeed Internet Accelerator Software. This board also contain All new GIGABYTEâ„¢ APP Center for simple and easy use and support Intel® Small Business Basics.
