GIGABYTE B760M GAMING PLUS WIFI DDR4 14th/13th/12th Gen Micro ATX Motherboard
Original price was: 25,000.00৳ .21,000.00৳ Current price is: 21,000.00৳ .
- CPU Socket Type: LGA 1700
- Motherboard Chipset: B760
- LAN Port: Realtek GbE LAN chip
- Form Factor: Micro ATX
| Brands |
|---|
| Processor | |
| CPU Socket | LGA1700 |
| Mainboard | |
| Chipset | Intel B760 Express Chipset |
| Memory | |
| Memory Specifications | Support for DDR4 5333(O.C.)/ 5133(O.C.)/ 5000(O.C.)/ 4933(O.C.)/ 4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200/3000/2933/2666/2400/2133 MT/s memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules |
| Memory Size | Supporting up to 128 GB (32 GB single DIMM capacity) of system memory |
| Memory Type | DDR4 |
| Memory Slot | 4 |
| Storage | |
| Supported Storage | CPU: 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) 4 x SATA 6Gb/s connectors |
| Graphics | |
| Graphics | Onboard Graphics Integrated Graphics Processor-Intel HD Graphics support: 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. ** Support for native HDMI 2.1 TMDS compatible ports. 1 x DisplayPort, supporting a maximum resolution of 4096×2304@60 Hz * Support for DisplayPort 1.2 version and HDCP 2.3 |
| Audio & Microphone | |
| Audio | Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel |
| Networking & Connectivity | |
| Wireless Connectivity | Realtek Wi-Fi 6 RTL8851BE WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz carrier frequency bands BLUETOOTH 5.3 Support for 11ax 160MHz wireless standard |
| LAN | Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps) |
| Software | |
| Bundled Software | Norton Internet Security (OEM version) LAN bandwidth management software |
| Technical Info | |
| Model | B760M GAMING PLUS WIFI |
| BIOS | 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Ports | |
| PCI Card Slot | CPU: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 * The PCIEX16 slot can only support a graphics card or an NVMe SSD. Chipset: 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1 |

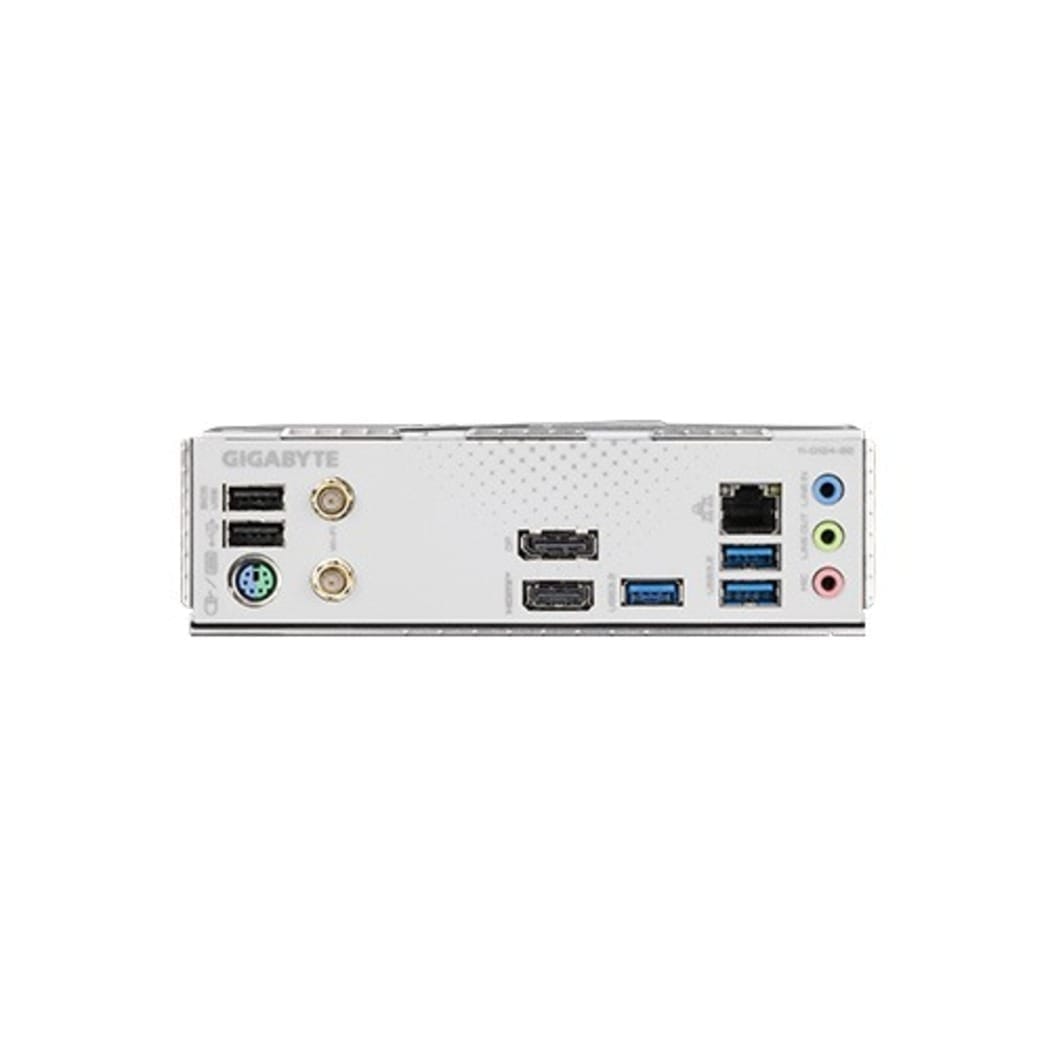

| I/O Port | Internal I/O Connectors 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 3 x system fan headers 1 x addressable LED strip header 1 x RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x serial port header 1 x parallel port header 1 x S/PDIF Out header 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper Back Panel Connectors 2 x USB 2.0/1.1 ports 1 x PS/2 keyboard/mouse port 2 x SMA antenna connectors (2T2R) 1 x DisplayPort 1 x HDMI port 3 x USB 3.2 Gen 1 ports 1 x RJ-45 port 3 x audio jacks |
| USB | Chipset: 1 x USB Type-C port with USB 3.2 Gen 1 support, available through the internal USB header 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header) 2 x USB 2.0/1.1 ports on the back panel Chipset+USB 2.0 Hub: 4 x USB 2.0/1.1 ports available through the internal USB headers |
| HDMI | 1 x HDMI port |
| Special Features | |
| Special Features | Support for GIGABYTE Control Center (GCC) Support for Q-Flash Support for Q-Flash Plus |
| Physical Specification | |
| Form Factor | Micro ATX Form Factor; 24.4cm x 24.4cm |
| Others | |
| Other Features | Display Port (s): 1 x DisplayPort RAID: RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices TPM (Trusted Platform Module) 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 / GC-TPM2.0 SPI V2 module only) |
| Warranty Information | |
| Warranty | 3 Years |
