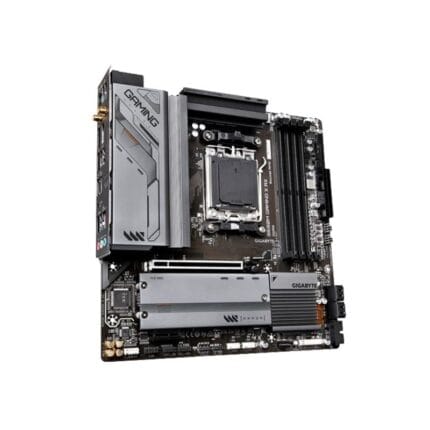

Gigabyte B650M Gaming X AX DDR5 M-ATX AMD Motherboard
Original price was: 30,500.00৳ .25,100.00৳ Current price is: 25,100.00৳ .
GIGABYTE B650M K AM5 AMD DDR5 MICRO-ATX MOTHERBOARD
Original price was: 18,300.00৳ .14,500.00৳ Current price is: 14,500.00৳ .
GIGABYTE B650M H AM5 DDR5 Micro-ATX Motherboard
Original price was: 14,800.00৳ .13,000.00৳ Current price is: 13,000.00৳ .
Key Features
- Chipset: AMD B650
- Type: DDR5
- Form Factor: Micro ATX
- Slots: 2 x DIMM
| Brands |
|---|
Description
| Processor | |
| Supported CPU | AMD Socket AM5, support for: AMD Ryzen 7000 / Ryzen 8000 / Ryzen 9000 Series Processors |
| Mainboard | |
| Chipset | AMD B650 |
| Memory | |
| Memory Specifications | 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) memory modules |
| Memory Size | supporting up to 96 GB (48 GB single DIMM capacity) of system memory |
| Memory Type | DDR5 |
| Storage | |
| Storage | 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2580/2280 SSDs: – AMD Ryzen 7000 Series Processors support PCIe 4.0 x4/x2 SSDs – AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs – AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs 4 x SATA 6Gb/s connectors |
| Graphics | |
| Graphics | supporting a maximum resolution of 3840×2160@144 Hz * Support for DisplayPort 1.4 version. supporting a maximum resolution of 4096×2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. ** Support for native HDMI 2.1 TMDS compatible ports. |
| Audio & Microphone | |
| Audio | Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel |
| Networking & Connectivity | |
| LAN | Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps) |
| Software | |
| Software Features | Norton Internet Security (OEM version) LAN bandwidth management software |
| Technical Info | |
| BIOS | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Ports | |
| I/O Port | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 2 x system fan headers 1 x addressable LED strip header 1 x RGB LED strip header 1 x M.2 Socket 3 connector 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Clear CMOS jumper Back Panel Connectors 4 x USB 2.0/1.1 ports 1 x PS/2 keyboard/mouse port 1 x Q-Flash Plus button 2 x USB 3.2 Gen 1 ports 1 x DisplayPort |
| PCI Card Slot | 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: – AMD Ryzen 7000 Series Processors support PCIe 4.0 x16 mode – AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode – AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: – 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1(PCIEX1) |
| Port | 1 x DisplayPort |
| Slots | 2 x DIMM |
| Jack | 3 x audio jacks |
| USB | CPU: – 2 x USB 3.2 Gen 1 ports on the back panel – 1 x USB 2.0/1.1 port on the back panel Chipset: – 2 x USB 3.2 Gen 1 ports available through the internal USB header – 7 x USB 2.0/1.1 ports (3 ports on the back panel, 4 ports available through the internal USB headers) |
| HDMI | 1 x HDMI |
| Special Features | |
| Speacial Features | TPM:1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) Support for GIGABYTE Control Center (GCC) Support for Q-Flash Support for Q-Flash Plus |
| Physical Specification | |
| Form Factor | mATX |
| Others | |
| Other Features | RAID: RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, and RAID 10 support for SATA storage devices |
| Warranty Information | |
| Warranty | 3 Years |
